BIQU H2 MAD System Mount
by DougDimmadome · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 34.9k |
| Uploaded | Jan 24, 2023 |
⬇ 121 downloads
❤ 16 likes
👁 1.2k views
Description

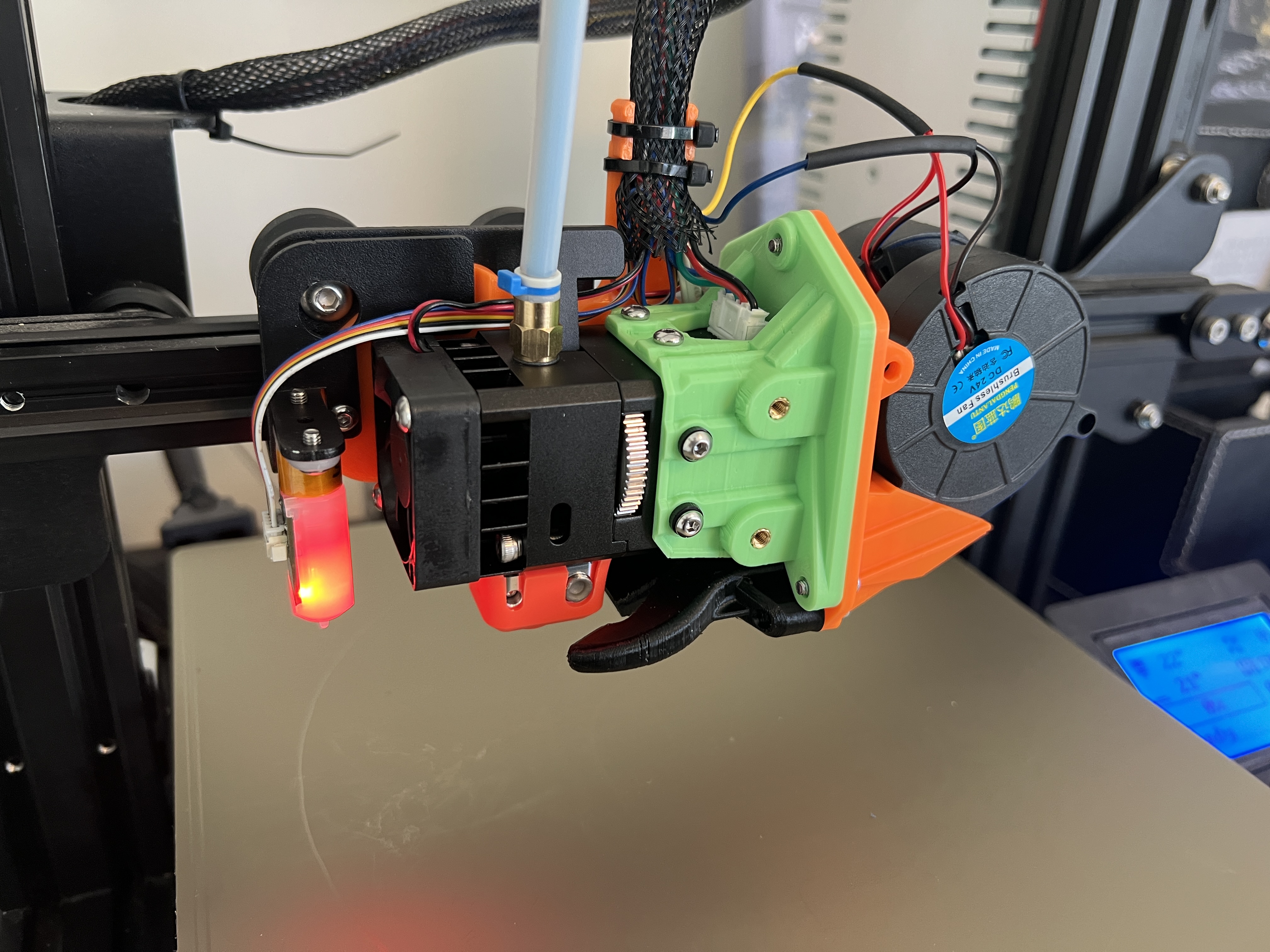

I created a mounting plate for the MAD system on an Ender 3, I also modified the base MAD mount and the dual 5015 bracket to avoid clearance issues with the X axis gantry. The mounting plate is also setup to use the metal bracket that comes with the BL Touch. The way I have my printer configured, my effective build plate space is 235x214, You could likely get more space but I haven't 100% completed that part yet. I have uploaded my printer.cfg for reference.
AI Analysis: This is a mounting bracket designed for printer components, specifically for holding and organizing cooling fans and ducting. It features multiple connection points for wiring and airflow management to support dual cooling systems in printers.
