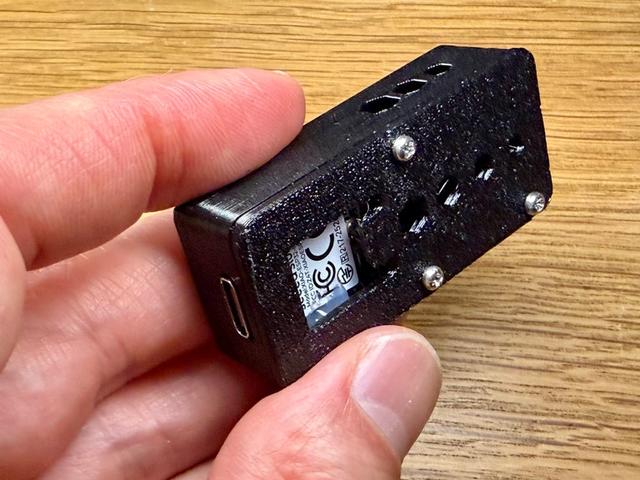

Biscuit DIY Compact Case for XIAO ESP32-C5 (Seeed Studio)

Compact 3D printed enclosure designed for the Seeed Studio XIAO ESP32C5, with integrated PCB antenna support and thermal management. Originally made for the Biscuit DIY project, a discreet and portable pentest tool. Biscuit project : https://discord.com/channels/1462643913813790816/1473035099003162726 https://biscuitshop.us https://codehedge.github.io/diy_node_web_flasher/ https://github.com/CodeHedge ⸻ Features • Enclosure size: 55 × 25 × 15 mm • Designed for PCB antenna (48 × 14 × 1.4 mm, 2.4 / 5.8 GHz) • Ventilation openings for airflow • Space for optional heatsink (~11 × 11 × 5 mm) • Internal mounting plate (double-sided tape) • USB-C access • 3-part design: base, inner plate, top cover • Closed with 3 × M2 screws (7 mm) ⸻ Assembly • Attach the PCB antenna inside the bottom part • Mount the XIAO ESP32-C5 on the internal plate using double-sided tape • Add a heatsink if needed • Assemble the enclosure • Secure with the 3 M2 screws ⸻ Notes • Antenna gain (~8 dBi) is manufacturer-rated and not guaranteed in real conditions • RF performance depends on environment and placement • PETG recommended for better heat resistance ⸻ Use Case Designed for Biscuit DIY, a small and discreet pentesting device: can be powered via USB-C (phone, power bank, or standard adapter), making it suitable for portable setups. ⸻ Si tu veux pousser encore plus loin, je peux te faire : • un titre + tags SEO Thingiverse optimisés • ou une version “release GitHub” avec doc propre 👍
