Blast Gate Ball Valve with flange and stop
by David Clark · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 21.5k |
| Uploaded | Apr 3, 2025 |
⬇ 69 downloads
❤ 14 likes
👁 697 views
Description

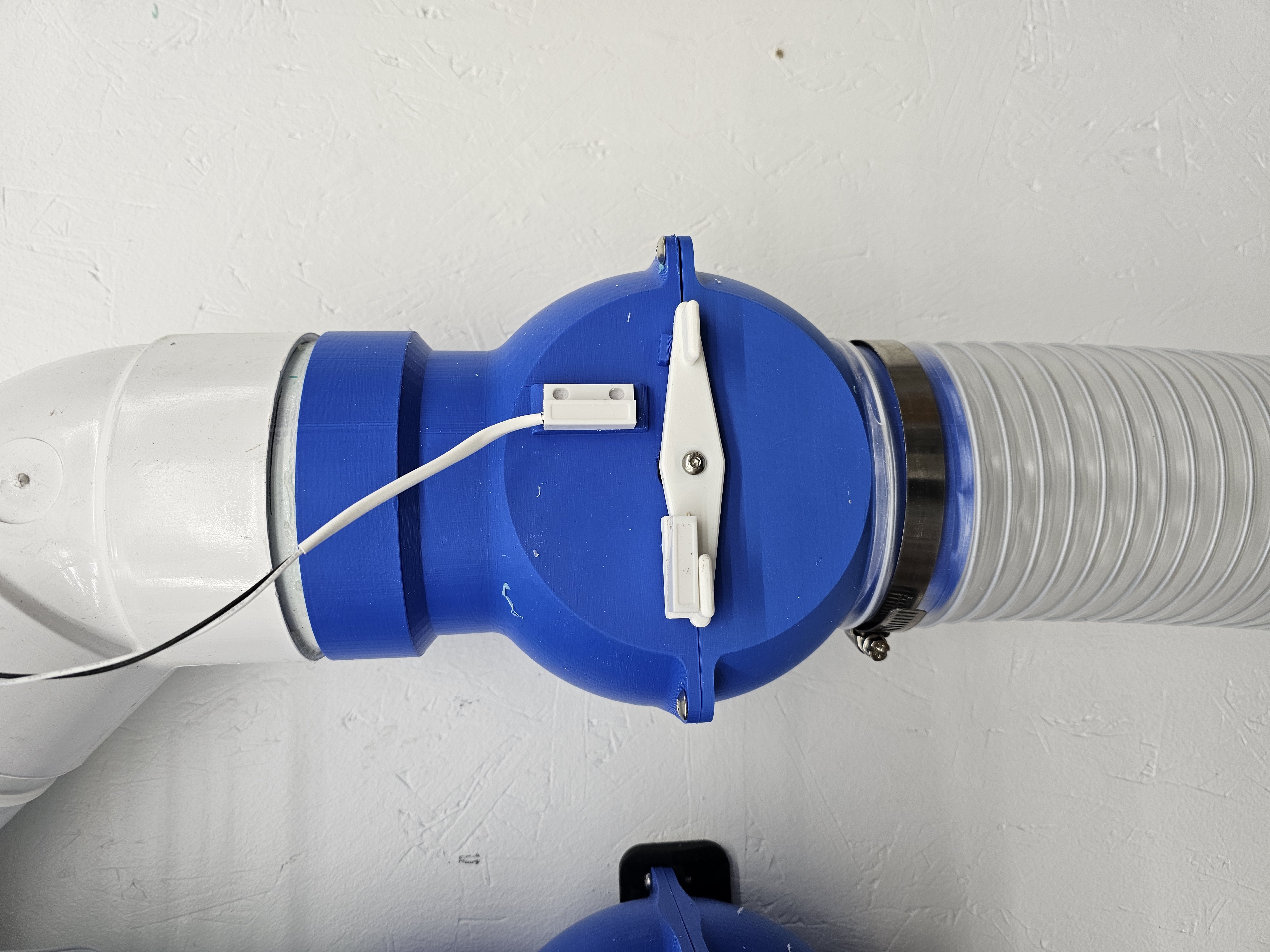

This remake adds a mount for a magnetic microswitch, a lever modification with a mount for the magnet, and a flange to interface with a 100mm/4" PVC pipe. Included is a copy of the case without the flange. Also a flange adapter to put on the case without the flange. To make a full blast gate you need from Peter's original: rotator both lugs 1 case for the bottom With the modified top case and the lever in this model. Updated model to include the magnetic threaded hose coupler. I cannot find the original I used - I did not make the model, nor do I claim ownership. If/when I find the oringial I will post a link.
