Bluetooth Inclinometer (with optional OLED and tare button)

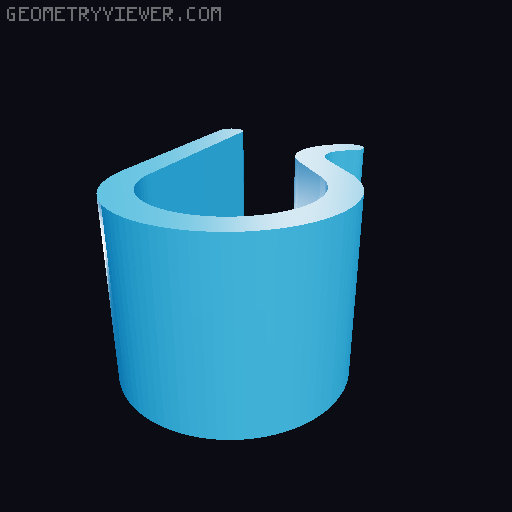

I designed these accessories for my ble-inclinometer project. I mostly use it on my RC aircraft and helis, to set up control surfaces and blade pitch. It's also convenient for other tasks where precise angle measurements are needed. I designed with 2 separate parts to keep the clip on sensor lightweight, which works better with flexible surfaces and weak servos. It requires a "Seeed XIAO NRF52480 Sense" board, with an optional OLED and momentary button for use without a BLE phone app. The code is written such that only a battery, the XIAO board, and clips are required (standalone BLE use). More info and the code for this project is located on my github: https://github.com/truglodite/ble-inclinometer/tree/main All parts are designed for printing with TPU, no rotations required. The case does require supports for the lipo holder and tare button areas (no supports needed for the screw holes or text). The case assembles with M2 nuts and bolts; bolt lengths from 6 to 12mm should work (7mm is optimal).
