Blum HK Door Bracket Mount Template

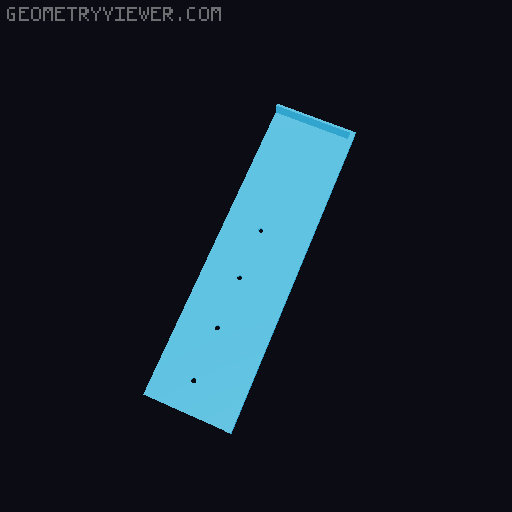

You can use this template to locate the screw holes for your Blum HK Door Bracket. The two stls file have the same hole locations. I just realized the "non-small" one was unnecessarily big, and made a smaller one. (But since the photo is of the bigger one, I uploaded them both.) To do both sides of the door, you'll need to print one normal, and one mirror image. Important: This template was designed around a no face frame cabinet, with a door overlay that was 16.4mm on the top, and 14.8mm on the sides (Those overlays came from 18mm thick plywood cabinet, with gaps of 1/16" (top) and 1/8" (sides). Your cabinet overlay may be different! I've included the Fusion file if you need to modify it.)
