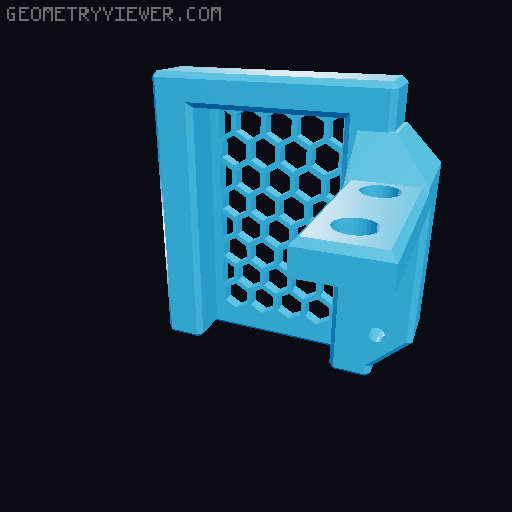

BLV AM8 Biqu H2 V2S Extruder mount 3D model thumbnail

BLV AM8 Biqu H2 V2S Extruder mount

by jriordan001 · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles2.8k
UploadedMar 16, 2024
⬇ 64 downloads ❤ 9 likes 👁 729 views

Description

I am using a modified BLV AM8 printer and many of the available options for extruders W/ EVA3 don't work well with the X belt routing so with some inspiration from other H2 mounts I designed this to work. For the AM8 BLV I also needed a few other parts I will link below. Modified Front face Mounts H2 V2S nozzle at the same height EVA3 was designed for. Modified Fan ducts extended 10mm to recenter on H2 V2S nozzle ALL Heat Insert models only. MGN12H top mount with X end stop: https://www.printables.com/model/242333-mgn12h-compatibility-for-eva3 MGN12H top mount w/o X end stop and extra zip-tie holes https://www.printables.com/model/216313-top-for-eva-3-mgn12h BLV AM8 Belt Grabber: https://www.thingiverse.com/thing:2954753/files
am8 blv eva3 h2v2s
