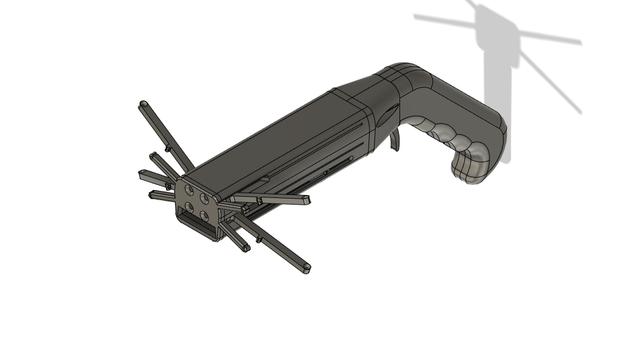

Bottel opening dragon crossbow thing

Big thanks to ss3dprintingBE for inspiration. Printer: FDM Material: PLA Layerhight: 0,3 Infill: 10% Walls: 3 Support: only required for the grips and accelerator Standard parts: DIN EN ISO 4762 - M3x15 → Grip 5x DIN EN ISO 7046 - M3x5 → Front 4x DIN EN ISO 8734 - 3x8 → Throwing arms 4x DIN EN ISO 8734 - 3x12 → Trigger 1x DIN EN ISO 10270 - 0,55x6,0x13,9 → Throwing arms 4x DIN EN ISO 9012 M5 → Main body 1x I used some kind of fishing string Ø0,3mm. You can screw the bolts directly in the plastic, but i recommend to cut it first with a tab. To reduce friction sand the accelerator a bit and use some greas. The little pieces on the main body are only to support while printing, these can be cut away.
