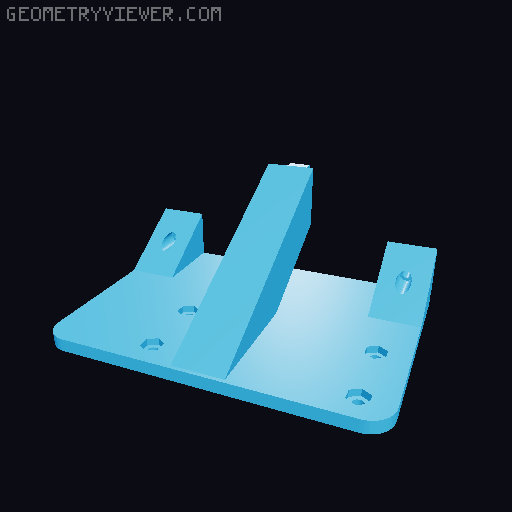

Bottle cutter plate/mount for Recreator 3D MK6 Fun Size 3D model thumbnail

Bottle cutter plate/mount for Recreator 3D MK6 Fun Size

by ba114 · via Printables
FormatSTL
CategoryArt
LicenseCC BY
Triangles46.7k
UploadedMay 25, 2023
⬇ 127 downloads ❤ 18 likes 👁 996 views

Description

This remix adds a plate to the left of the hotend on a Recreator 3d MK6 Funsize, replacing the mini spooler. This plate is designed to be used with the included bottle cutter and has the appropriate matching M4 mounting holes, however feel free to adapt to suit your own. Mounting the plate requires 2x M3 threaded inserts to be set into the middle of the 20x20 extrusions. Additionally, a support has been added that inserts into the hole left behind by the minispooler. The bottle cutter is designed to suit 608 bearings and has provision for a 12mm OD rod. I used some cheap aluminium tube from the local hardware store. Additionally there is a threaded hole for an M8 guide bolt for the cutter.
funsize recreator3d
