Box - print in place, ANY SIZE, no support, easy adjustable in FreeCAD 3D model thumbnail

Box - print in place, ANY SIZE, no support, easy adjustable in FreeCAD

by wiher23 · via Thingiverse
FormatSTL
CategoryGadgets
LicenseCC BY-SA
UploadedApr 2, 2026
⬇ 17 downloads ❤ 2 likes 👁 48 views

Description

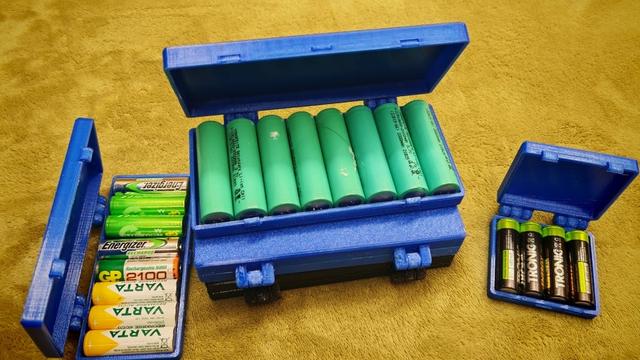

Multipurpose case to print in place without any support. Hinges works smooth and closing snaps with click. Provided here models are ideal for storing batteries and can easily be modified if change variables in FreeCad. You only need to change certain variables in the "VarSet" section of the project. You'll likely want to change for example: the box dimensions (xyz), wall thickness, hinge gap, distance between hinges, and hinges size. All of this and more is easily adjustable using the variables I've provided in FreeCAD project -check the SCREENSHOTS i've provided. Tips: Sometimes it's better to adjust some variables gradually to prevent "sketch skipping. I've worked on this hard but still can be some issues The "hinges_gap" variable can likely be reduced on newer printers or different filaments. I had to set this variable to 2 mm when printing in PETG on my Elegoo Neptune 2s. If case is needed with different cover and box size, check the model: "BOX with lid changed.FCStd" Printed on Neptune Elegoo 2s & Artillery Hornet. mainly in PETG, sometimes PLA
18650 battery 18650 battery holder 18650 case 18650 holder AA Batteries AAA Batteries Adjustable arduino case batteries batteries storage box box case computer case Created with FreeCAD freecad gearbox hinge hinged hinges Made with FreeCAD phone case RC Batteries rechargable batteries Storage Box Variables

Originally published on Thingiverse
