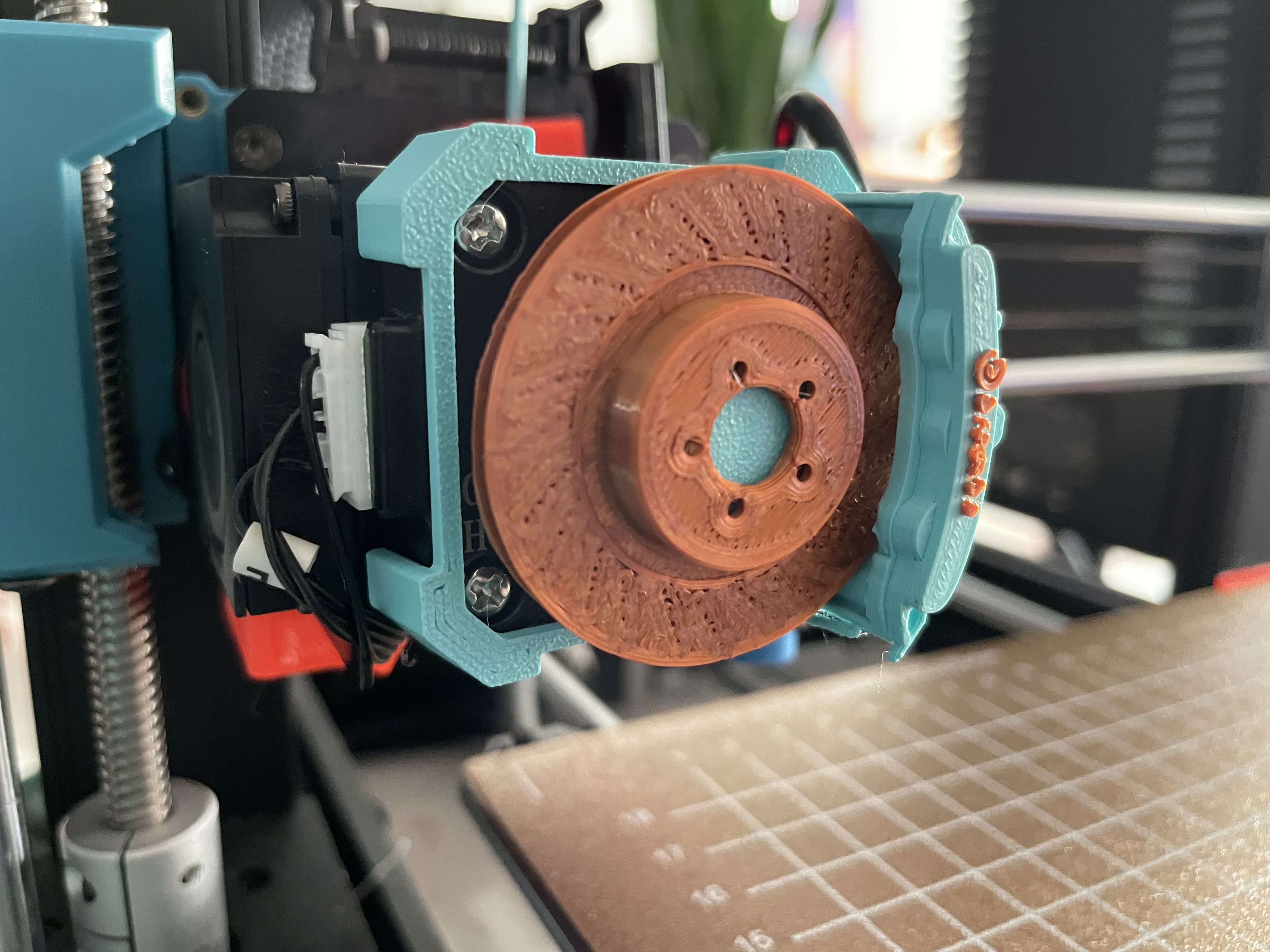

Brembo Brake Disc Extruder - SV06 remix mount 3D model thumbnail

Brembo Brake Disc Extruder - SV06 remix mount

by bdanders3d · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC-SA
Triangles3.4k
UploadedApr 10, 2023
⬇ 73 downloads ❤ 26 likes 👁 1.0k views

Description

Remixed the pin and extruder mount to make the original model attach to an SV06. I had to redesign the extruder mount from scratch to match the dimensions of the SV06 extruder and make adjustments on the left side clips. The pin is a remix from the linked file, I only used the actual attach point for the extruder pin. note that I used the remixed single piece version of the calipers found here: https://www.printables.com/model/289487-brembo-racing-brakes-extruder-visualizer-better-sp The current pin design may not work with the original calipers, I have not tested or measured it.
extruderindicator extrudervisualizer discbrake brembo sv06 sovolsv06 sv06sovol
