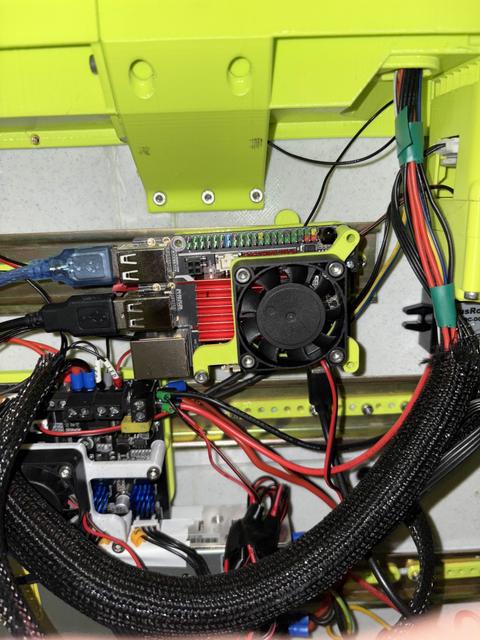

BTT Pi V1.2 Mount 3D model thumbnail

BTT Pi V1.2 Mount

by noahh.jp · via Printables
FormatSTL
CategoryMechanical
LicenseCC BY-NC-SA
Triangles18.7k
UploadedJan 17, 2025
⬇ 57 downloads ❤ 10 likes 👁 328 views

Description

This is a remix of the original Raspberry Pi provided by RH3D. When I had printed out the original mount, I noticed that the 4th hole didn't line up and the cooling mount was too short to clear the bits on the sbc. The BTT Pi utilizes M2.5 bolts, but you can drill it out slightly to fit M3. Uses the generic DIN rail mounts as well. Hardware 3xM2.5 or M3 20mm long 1x M2.5 or M3 6mm or longer
raspberry pi btt sbc
