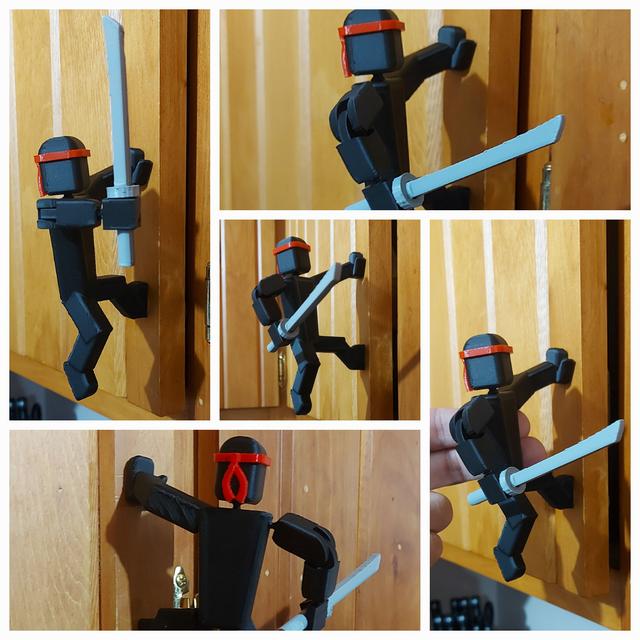

Cabinet Ninja, an articulated handle
by Dr Operator · via Printables
| Format | STL |
| Category | Home |
| License | CC BY-NC-ND |
| Uploaded | Feb 21, 2023 |
⬇ 221 downloads
❤ 156 likes
👁 2.8k views
Description
The left arm, torso and legs of Body 1 are stationary and act as the handle while the right arm and head are articulated. I've included a version (Body 2) where the right leg is articulate as well. If making Body 2, print a second Arm.stl to use as a leg. If you're printing Body 1, there is no need to print a Foot.stl. Supports will be needed when printing either Body 1 or Body 2. Assembly is pretty straightforward. The only thing to watch out for is how you're putting the two arm pieces together. The long curved side of each piece should be facing the same way as seen in the picture below. 📷 Image redacted — claim this model to add your own media There are M4 threads in both the left hand and left foot. The ball and socket used to connect the head and arm to the torso are remixed from Lucky13 . The Sword and Bandana are remixed from my Fridge Ninjas design. UPDATE: Fixed Body-1.stl and Body-2.stl so the thumb on the left hand is on the correct side and updated the pics.
