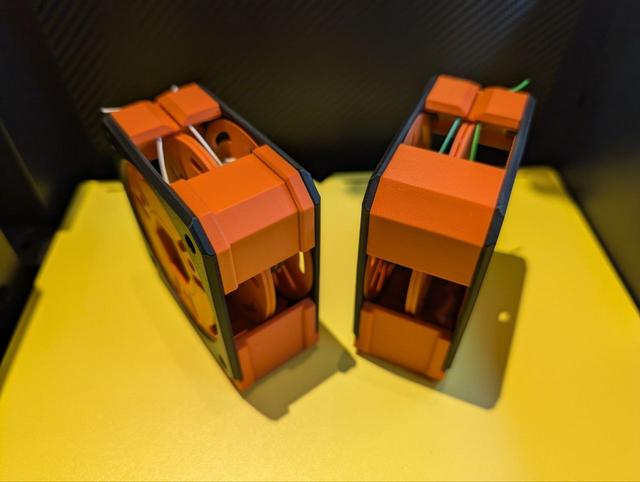

Cable Spool Holder Gridfinity - Alternative Corner Design

If you are a sensible human being stop reading here :) This model implements the indented and chamfered profile of the base plate and clamp/pinch to the corner of the Cable Spool Holder. To make it absolutely sure: This is stupid and has absolutely no functional improvement over the original corner. My obsessive-compulsive disorder is the only reason why this model exists. Bill of Material Part Count Comment Corner Right 1 Corner Left 1 1.2x8mm Positioning Pins 2 Using 1.2mm nails and cutting to 8mm works fine M3 Heat Inserts 2 e.g. from Ruthex Printing Print the parts in the orientation of the STL files and use PETG support for PLA or PLA support for PETG to get a nice chamfer. Assembly Start with putting the positioning pins into the Corner Right part 📷 Image redacted — claim this model to add your own media Apply CA glue to the surface and put Corner Right and Corner Left together aligning with positioning pins 📷 Image redacted — claim this model to add your own media Finally melt in the M3 heat inserts and the Corner with the alternative design is done 📷 Image redacted — claim this model to add your own media The rest of the assembly is the same like @firstgizmo described on the original model . Leave him a ❤ while you're there. 📷 Image redacted — claim this model to add your own media Sources STEP file and Fusion 360 sources of this model are included in here .
