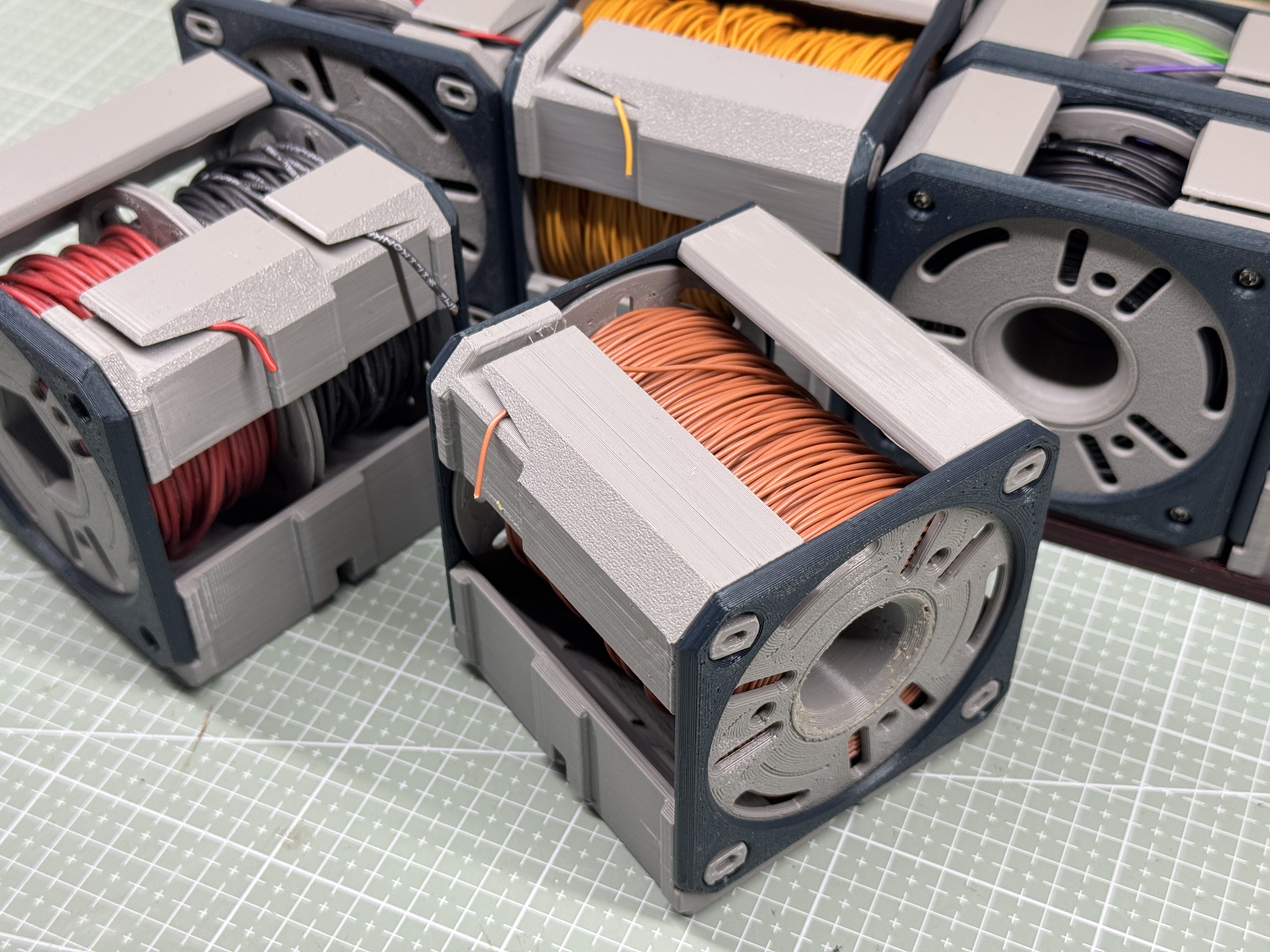

Cable Spool Holder Gridfinity

This spool holder organizes your cables neat and tidy. It protects against unwanted unraveling, is modular and can be used with the gridfinity eco system. Great to use for outdoor repairs too, since one can carry them without the spool unraveling in the tool bag. Fully printable, no hardware needed. The reel can easily be filled with the power tool adapter. Printing: Print all parts in the given orientation with 0.2mm layerhight. Note: Print the Corner part and one Bolt as test print first! If you discover that the test came out nicely but the bolt just falls out or gets stuck, scale -only- the bolt by increments 1% bigger or smaler until it fits nicely. This is caused by XY-comepnsation/Slicer sometimes messing up the tolerances. Depending on the settings used, one might have to use up to 105% scale for the bolt. If you dont feel comfortable using the printed fasteners afterwards, you are going to find a version for M3 bolts as well. Works with M3x8 to M3x16 bolts Assembly: You can put everything together as you want/need. The gridfinity corners can be replaced with a regular corner, if you dont want to use it with the Gridfinity system. Otherwise assemble all parts as seen in the pictures below. The Bolts are intended to be used with a flat head secrew driver. Assembly procedure is the same for M3 bolts 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media How to use: Wind up the spools by hand, before putting them in the holder or use the hand drill tool. be carefull and dont go full speed there, since PLA might melt becaus of excessive friction heat. 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Info: Tested some cable i have at hand, so you can expect the spool to take roughly the following amount of wire: Cable outer diameter [mm]/[AWG]SpoolHalf capacity [m]/[ft]SpoolLong capacity [m]/[ft]0.9mm / 19AWG100m / 328ft200m / 656ft1.0mm / 18AWG90m / 295ft180m / 590ft1.5mm / 15AWG50m / 164ft100m / 328ft I used this table to convert outer diameter from mm to AWG Looking for some smaler reels? Maybe have a try with these ones: 📷 Image redacted — claim this model to add your own media CHANGE LOG 12.07.2025 Added a knob style wind up tool, intended for hand use without power tools
