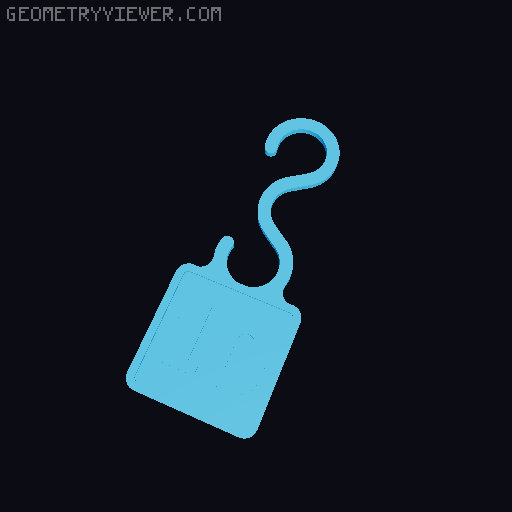

Cable tags with numbers
by 781234738129 · via Printables
| Format | STL |
| Category | Organisation |
| License | CC BY-NC |
| Triangles | 2.0k |
| Uploaded | Mar 4, 2022 |
⬇ 46 downloads
❤ 11 likes
👁 505 views
Description
I wanted tags for unmarked bundles of RJ45s at work. Inspired by the time I picked a roll of cable at random, spent a few hours routing it in crawlspaces only to realize it was a bit too short. Used Alego's blank .STL file, sketched text (artifakt element black-font) on F360, extruded it by 1,5 mm (because the sketch was flat on the horizontal plane), converted the blank mesh into a solid body and combined the 3 bodies. Then to save as an STL just right click the body in the browser and choose save as mesh. Personally, printed it with Prusa's default 0.25 mm draft settings (pic) and 15% infill but probably best to follow the original model's instructions The numbers signify cable lengths. If you need tags for different lengths get Alego's blank stl and do what I did. Shouldn't take more than a few minutes, literally spent more time googling for tags with lengths. As for the MMU, I don't see any reason it wouldn't work exactly like in the original.
