Cam housing for RPi Zero 160° camera (fits MK3S(+) camera mount)
by shevron · via Printables
| Format | STL |
| Category | Art |
| License | CC BY-NC-SA |
| Triangles | 372 |
| Uploaded | Feb 18, 2024 |
⬇ 44 downloads
❤ 14 likes
👁 828 views
Description

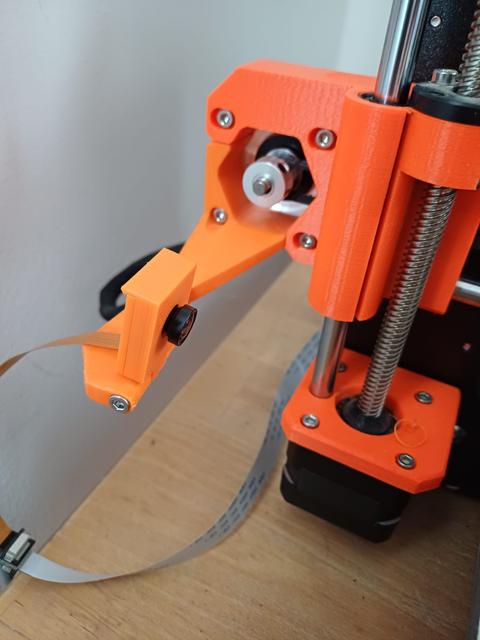

I had a wide-angle (160°) camera module for the Raspberry Pi Zero 2 W (from Pimoroni, but other brands carry the same module - https://shop.pimoroni.com/products/raspberry-pi-zero-camera-module?variant=3031238213642) lying around, and wanted to attach it to my Prusa i3 Mk3S+. I found some nice minimalist mounts but non that match this camera module. This is a remix of https://www.printables.com/model/64402-raspberry-pi-camera-mount-for-mk3s - use the same arm to attach the camera to the MK3S / MK3S+ X axis motor (so the camera stays level with the nozzle as the Z position changes), then print this as a case for the camera. You can fit the camera band cable (including the electronics) through the slot in the back. Unscrew the camera lens to close the front, then screw it back on (don't forget to adjust the focus!). Printed at 0.15mm layer height with PETG. As the original module states, you will need two M3 screws (see original description for details). For the record, I don't think this camera module is great for monitoring the print or producing nice print videos - it's too wide-angle and hard to focus. But it's what I had, so I needed a mount for it.
