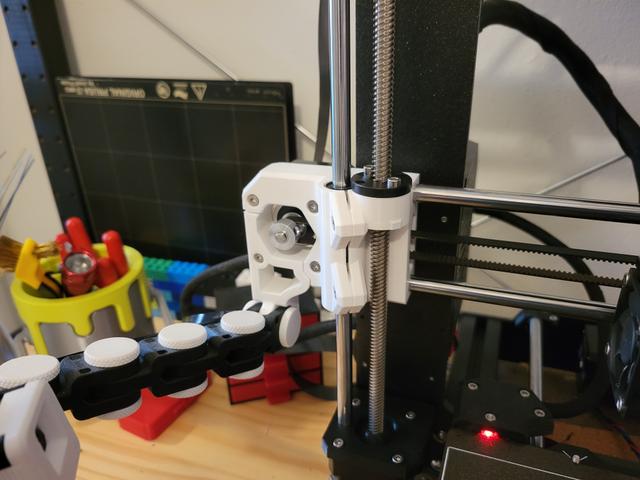

Camera-compatible x-axis 3D model thumbnail

Camera-compatible x-axis

by Julia Ebert · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles5.7k
UploadedOct 16, 2023
⬇ 27 downloads ❤ 6 likes 👁 410 views

Description

This is a modification of the motor end of Boogie's X-Axis revision with belt tensioner , made to fit Sneaks' x-axis mount for the Articulating Raspberry Pi Camera Mount for Prusa MK3 and MK2 . This replaces the x-end_motor_boogie.stl part. You will still need to print the two idler-end parts from original model and use all the same hardware as that design. This should not compromise the strength or structural integrity of the design; it has the same sized opening as in the original Prusa x-axis motor mount. In addition to allowing you to mount the articulating camera mount, it also allows more access to the grub screws on the motor so it's easier to adjust. This was made pretty quickly in Blender by offsetting, subtracting, and doing minor mesh cleanup. It's not perfect, because I am far from a Blender expert, but you can't tell once it's installed.
