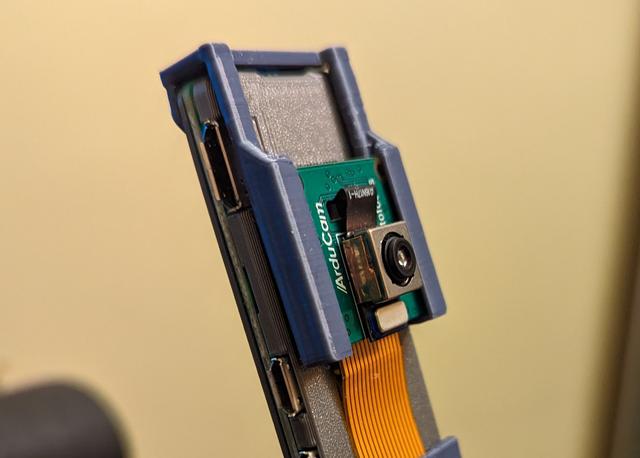

Camera Mount for the  Pi Zero Slim Case 3D model thumbnail

Camera Mount for the Pi Zero Slim Case

by Jamehz · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles1.6k
UploadedMar 24, 2023
⬇ 43 downloads ❤ 3 likes 👁 271 views

Description

I needed a simple camera mount to go along with my pi zero stand: https://www.printables.com/model/420118-hinged-stand-and-camera-mount-for-the-raspberry-ze It clips over the top, and uses the same top holes to fasten in the back. You'll need longer screws by 2mm. Just pull the mount apart to slide the camera in. It uses the cable's tension to keep in the slot. It's made to fit pretty well any standard pi 25mm board camera using the 40mm ribbon cable. Print as in the STL.
camera case mount raspberry pi raspberrypi zero
