CamLock 90 degree elbow
by Cornersruns · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC |
| Triangles | 16.1k |
| Uploaded | Aug 19, 2023 |
⬇ 42 downloads
❤ 5 likes
👁 401 views
Description

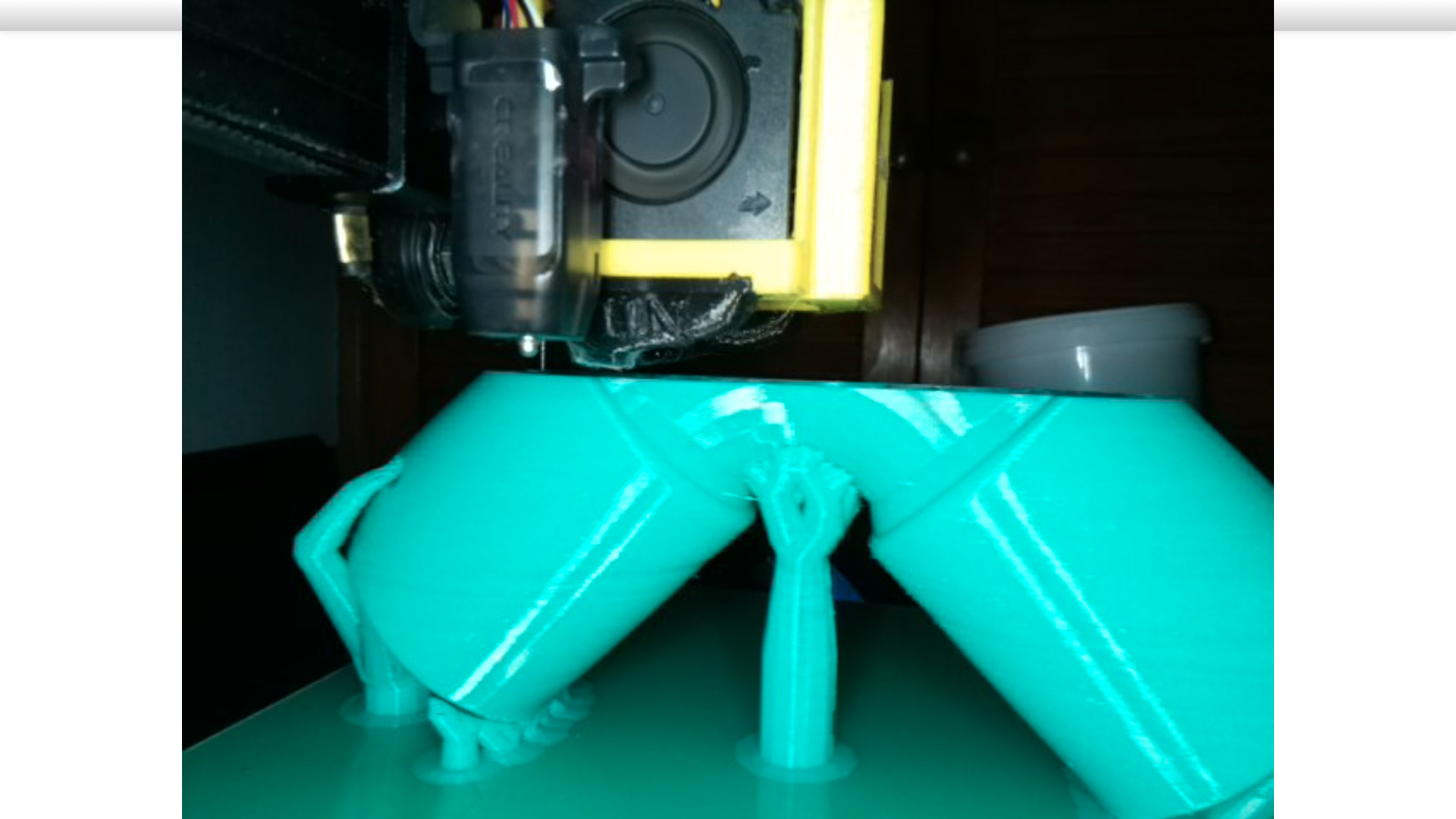

A 90 degree elbow for the awesome CamLock system. Incorporates my modification to the magnets. There is a small slot that the magnets push into so you don't have to add the magnet during the print. The magnets will stay in the slot, I've not had one fall out yet but you can add a dab of hot glue or the adhesive of your choice if you feel the need. That's why I've added the lever as it incorporates this change. Print in the orientation supplied as I believe this gives the strongest layer direction. It will need supports, I print in Cura so use tree supports. I use 5 walls and a high infill for strength, I do abuse these though and they get thrown around a kit. If you want to deviate from these settings feel free (at your own risk ;-)
AI Analysis: This is a mechanical part designed for vacuum cleaning systems. It features a 90-degree elbow joint that allows for flexible movement of the vacuum hose. The component is made of durable plastic and is typically used to connect the vacuum hose to the main vacuum unit. It is commonly found in household vacuum cleaners and is designed to provide a secure and stable connection point.
