CAMLOCK Adaptor for Bosch CM10GD Miter Saw
by Blernsball · via Printables
| Format | STL |
| Category | Tools |
| License | CC BY-NC-SA |
| Triangles | 6.7k |
| Uploaded | Feb 14, 2025 |
⬇ 27 downloads
❤ 6 likes
👁 168 views
Description

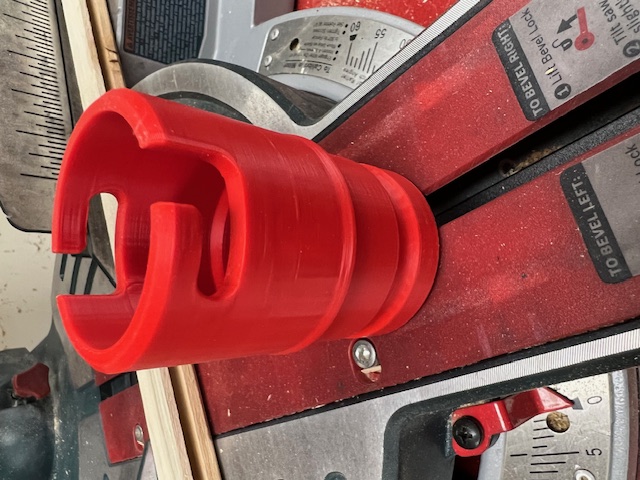

This a CAMLOCK Adaptor for the Bosch CM10GD Miter Saw. 43mm ID. It may work on other bosch saws if they have similar dust ports. Let me know in the comments and I'll modify the description. Printed at 0.2 with 25% infill and 6 wall loops for strength. Print with the cutouts side up. The cutouts need support. I used the tree supports and they worked well. Inner brim if you think it needs it. You'll obviously need to print the camlock fittings too.
AI Analysis: This is a red mechanical part designed for a Bosch CM10GD miter saw. It serves as an adapter to connect the CAMLOCK system to the saw's mounting mechanism. The part features a distinctive U-shaped design with a central hole and a flared base, allowing for secure attachment and precise adjustments during cutting operations. It is made from durable plastic and is intended for use in woodworking or metalworking applications.
