Camlock Bosch PBD 40
by Scout71 · via Printables
| Format | STL |
| Category | Tools |
| License | Public Domain (CC0) |
| Triangles | 42.2k |
| Uploaded | Jun 29, 2023 |
⬇ 96 downloads
❤ 31 likes
👁 3.2k views
Description

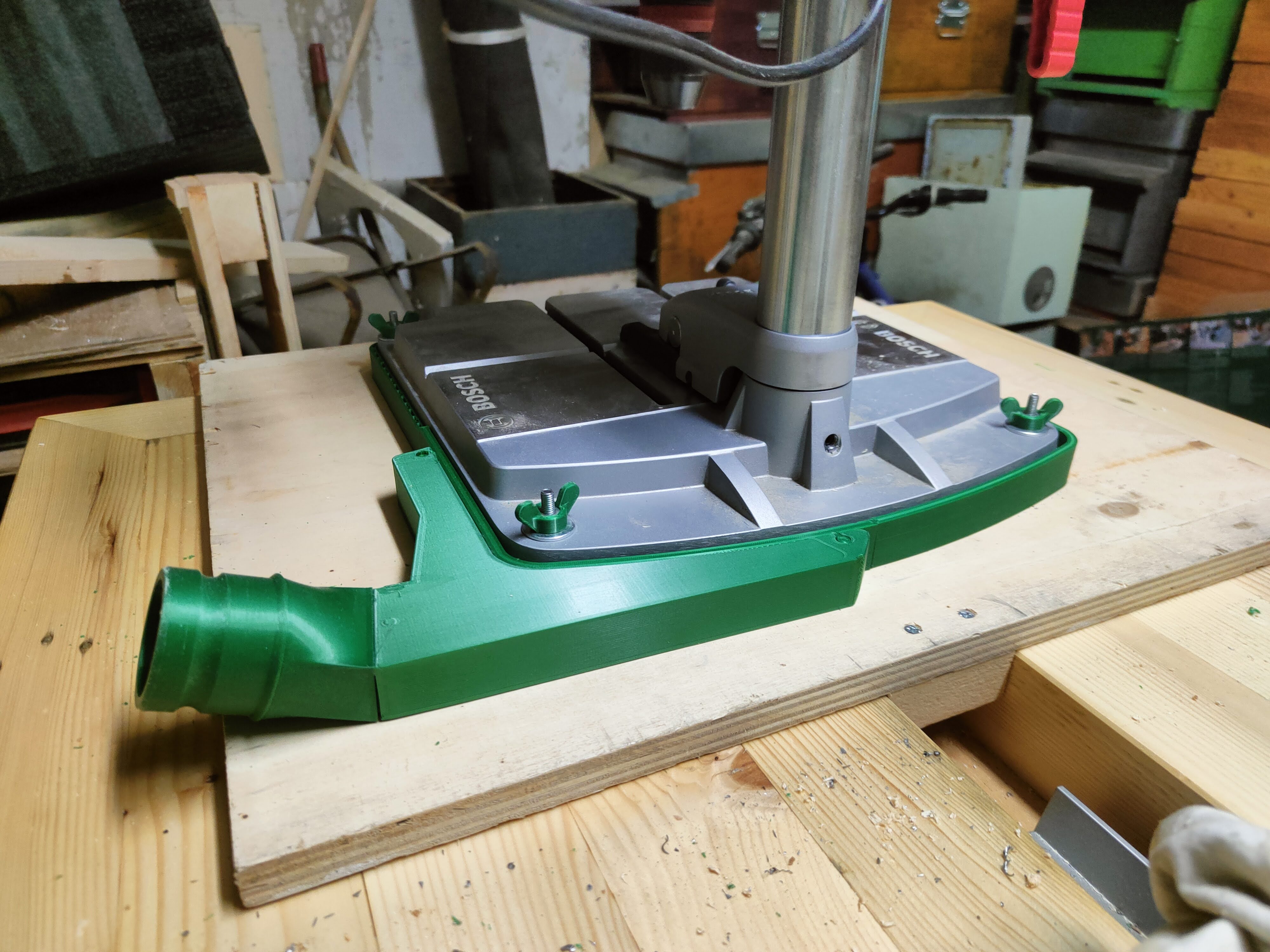

I created this insert to adapt the original design to the https model://www.printables.com/it/model/461256-shopvac-50mm-camlock-connectors-with-magnetic-catc I am very satisfied with both, let's see how it will behave over time. The model was created by not changing any size, all the pieces of the original model would like 101.5% printed (only in the x and y axes) to adapt to the Bosch drill, this I printed 100% and fits well. I finally attacked him with glue since I didn't care if it was detachable. P.S. Only notation. In printing the frame part, the power went out and did not finish the edge (note the photo). Since it was usable anyway, I thought I'd keep it that way so as not to consume more thread. If in the future I see that I like it very much then I will reprint it.
AI Analysis: This is a mechanical part designed for use in woodworking or metalworking, specifically a camlock mechanism from Bosch PBD 40. It is a component that secures a workpiece in place during operations such as cutting or drilling. The green and gray plastic construction features a cylindrical attachment and a camlock mechanism that allows for secure and adjustable positioning of the workpiece.
