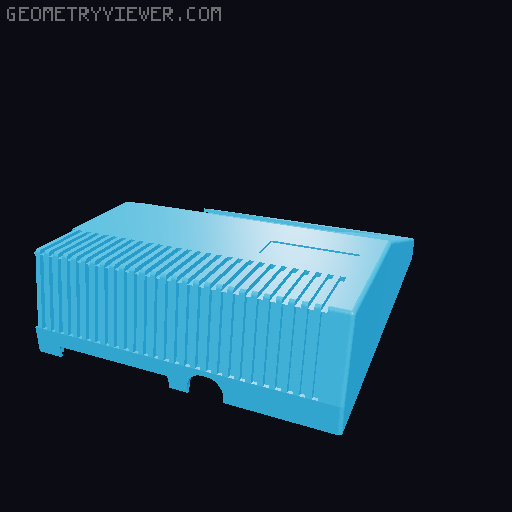

Camputers Lynx 128 Board Folk Edition reproduction case.
by Stephen_Usher · via Thingiverse
| Format | STL |
| Category | Mechanical |
| License | CC BY-SA |
| Triangles | 14.0k |
| Uploaded | Apr 16, 2026 |
⬇ 6 downloads
❤ 1 likes
👁 59 views
Description
This is a case for the Board Folk reproduction of the Camputers Lynx 128K British 8 bit computer. The GitHub repository for the PCBs is here: https://github.com/Board-Folk/Camputers-Lynx The case is based upon the dimentions and screw fixing points on these PCBs and photographs of the original computer, so it may not be completely accurate. I also don't have a modulator installed so I had to guess where the RF output should be. I've included here STL files for both the full upper and lower cases plus two sets split so that they can be pinted on 256x256x256 build plates/printers. To fit these together use a 1mm drill to ream out the supplied holes and fit 1mm brass rod to locate. You can then use glue to secure. Use M3 self-tapping screws to secure PCBs and the case halves: 3mm for the motherboard (except where the speaker bracket is attached) and 8mm for the keyboard and case halves.
