Case for Stratux ADSB / FLARM permanent installation 3D model thumbnail

Case for Stratux ADSB / FLARM permanent installation

by copterella · via Thingiverse
FormatSTL
CategoryElectronics
LicenseCC BY-SA
Triangles3.6k
UploadedApr 4, 2026
⬇ 5 downloads 👁 33 views

Description

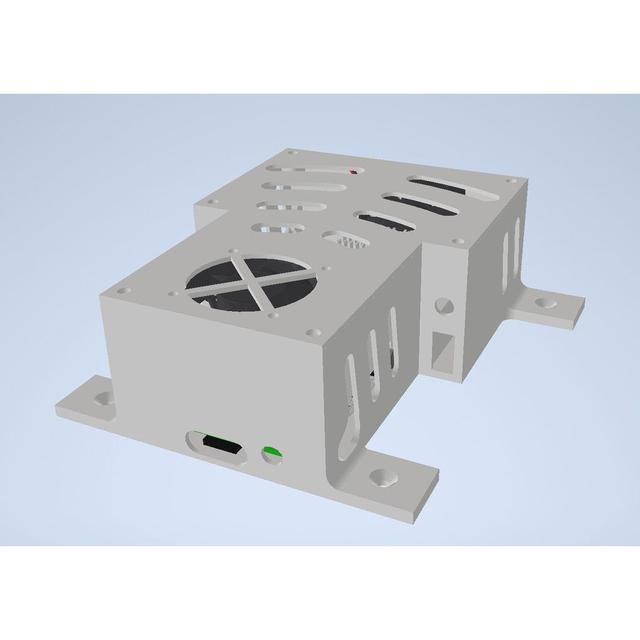

I love my Stratux! Which is why I wanted a neat and permanent installation in my plane. I desigend a case which is attached to the bottom side of the glove box in my C150 so its unobstructive and you cannot even see it's there. It is powered off 12V via a DC voltage converter and the case takes up all the components for full ADSB/AHRS functionality. See parts list below. It has openings for connection of power and external ADSB / GPS antennas. I am using a single, combined 1090MHz/FLARM antenna hooked up to the SDR modules via a Y-cable and the signal reception is excellent. Parts List: Raspberry Pi 4 https://www.amazon.de/dp/B07XQB3J63 Fan https://www.amazon.de/dp/B07ZBRJVSW SDR modules https://www.amazon.de/dp/B076GWF6FF DC converter https://www.amazon.de/dp/B0CGVMRQXB USB extension https://www.amazon.de/dp/B083Y2DR9Z GPS Antenna https://www.amazon.de/dp/B07LBWF1P7 Baro-Sensor https://www.amazon.de/dp/B07HMWB4PD Gyro-Sensor https://www.amazon.de/dp/B0DF83DC5Y ADSB/FLARM antenna search for : PNETAN80
ADSB aircraft case general aviation GPS raspberry pi case Stratux
