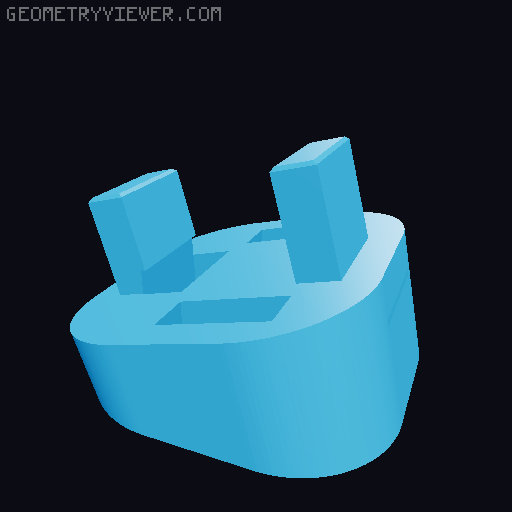

choc keycap tilter both directions 3D model thumbnail

choc keycap tilter both directions

by arst · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles842
UploadedMay 29, 2025
⬇ 31 downloads ❤ 5 likes 👁 154 views

Description

This is a simple remix of Gurtmail's, just adding in the option for the cap to be horizontal or vertically mounted. No supports needed. Note that the rotated versions compromises one of the stems inserts to get as close as possible to center without giving up too much. They're still strong enough, but you'll need to be mindful about removing from the plate or the board. Any broken parts are easily extracted though. The rotated ones do not print with an overhang when using Arachne for the wall generator and that also helps remove the need to shave down the holes for some thicker stemmed caps.
keyboard kailh tilt mechanicalkeyboard choc
