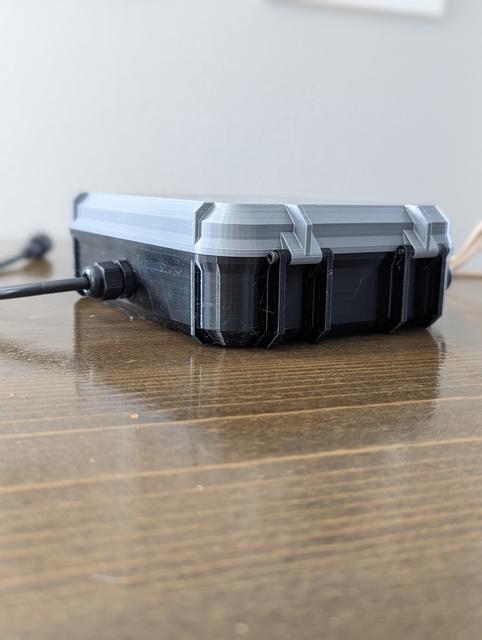

Christmas lights control box for Falcon Pi Player 3D model thumbnail

Christmas lights control box for Falcon Pi Player

by npike · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC-SA
Triangles4.7k
UploadedJan 8, 2023
⬇ 62 downloads ❤ 11 likes 👁 752 views

Description

A box we use for our holiday light show. Inside is a raspberry pi 4, an esp32, a 5amp fuse, and a FM transmitter. I haven't done the best job with wire organization, that will be a project next year! The pi runs falcon pi player. The esp32 runs wled. (https://www.tindie.com/products/k7bbr/wasatch-duo-controller-wwled-and-ethernet/) The box contains cut outs for weather proof glands: PG7 for connect pigtail. PG11 for two Ethernet cables. PG13.5 for RPI USBC cable (power) and 12v supply for pixels and esp32. I used these screws for the hinge and latch mechanism: https://www.amazon.com/dp/B07JJC1KY4?ref=ppx_pop_mob_ap_share
falcon raspberrypi xlights fpp
