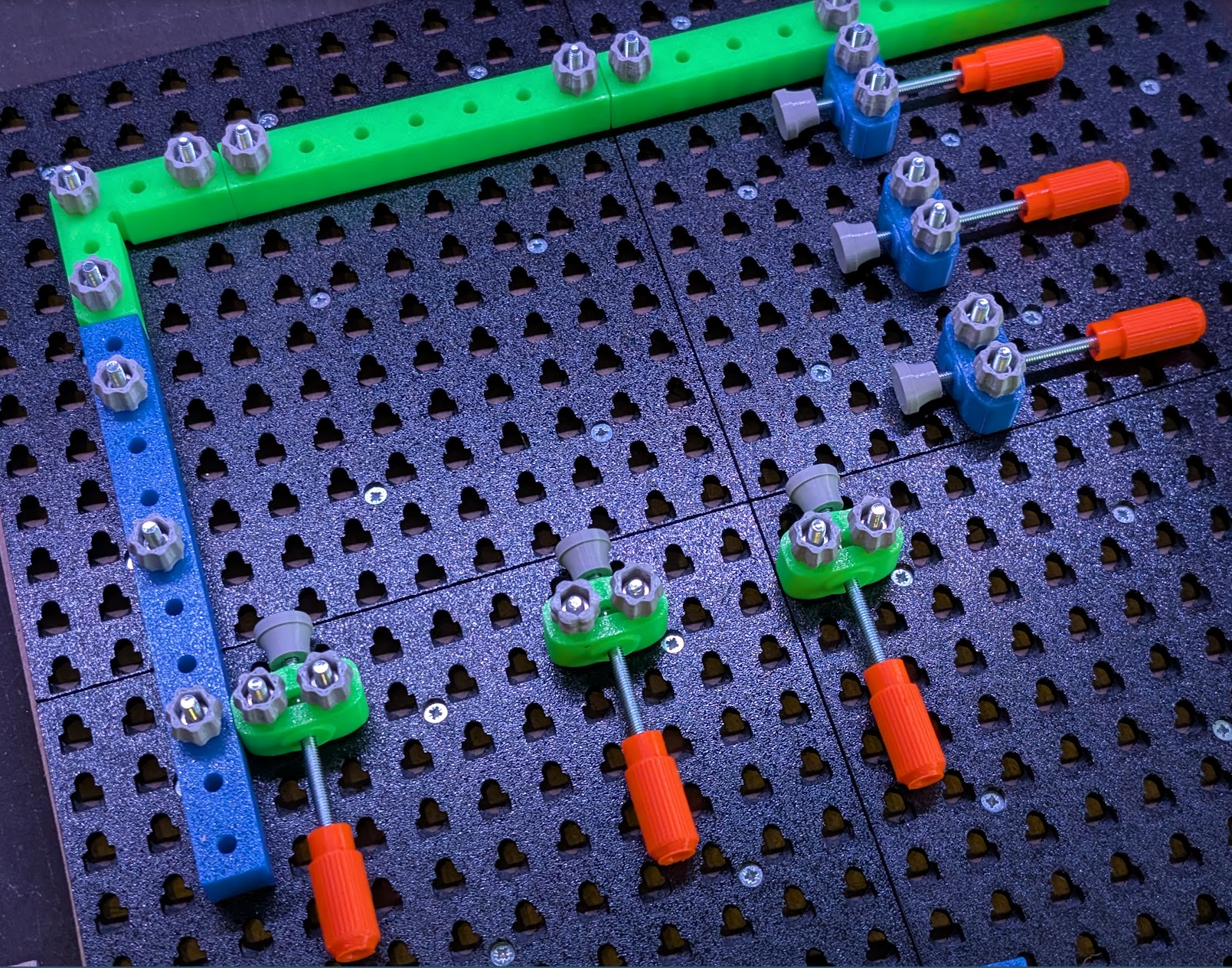

Clamp Knob (M4) for Fixit Fixturing System 3D model thumbnail

Clamp Knob (M4) for Fixit Fixturing System

by kame · via Printables
FormatSTL
CategoryTools
LicenseCC BY
Triangles2.2k
UploadedMay 17, 2025
⬇ 56 downloads ❤ 8 likes 👁 342 views

Description

Intended for use with https://www.printables.com/model/1262772-fixit-fixturing-system-v1-boards They're large enough to give significant mechanical advantage when finger-tightening, but small enough to fit two per clamp, and won't get in the way of your boards. Printing ≤.25mm layers 15% infill no supports, but brim might be a good idea if you're printing a bunch at once PETG Usage Place a M4 nut on a hard surface Push the knob onto the nut Thread two knobs at a time onto a M4 screw, with the threading facing out Turn the knobs against each other to fully seat the nuts
box laser lasercutter clamp m4 fixit

Originally published on Printables
