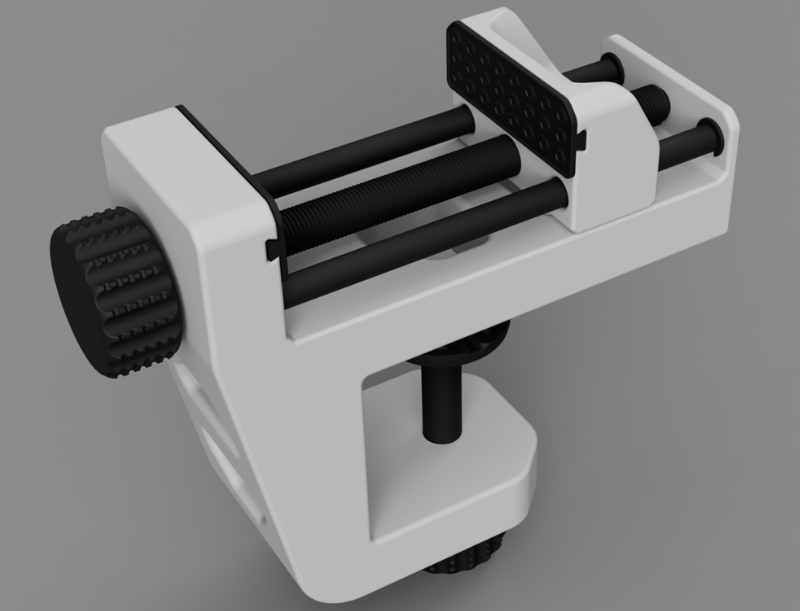

Clamp on Vice- Fully 3D Printed by MuskokaResearch

Summary This is a clamp-on vise with interchangeable TPU pads and a 5" operating range. 100% 3D PRINTABLE Additional Parts: 3x Retaining Clip.stl 2x Guide Rod A.stl 2x Grip.stl Assembly (See Pictures): Adhere Frame Base Pad TPU to Frame. Install Grip TPU to Frame and Vise via dovetail slots. Partially thread in Mounting Bolt. Thread Mount Plate TPU onto Mounting Bolt. Mount the vise to a benchtop to complete the following steps. Feed both guide rods through the Frame and Vise. Attach one Retaining Clip to the grooved sections at the base of each guide rod. Install Threaded Rod all the way through the Frame and Vise. Attach the final Retaining Clip to the end of the Threaded Rod.
