Clay press machine

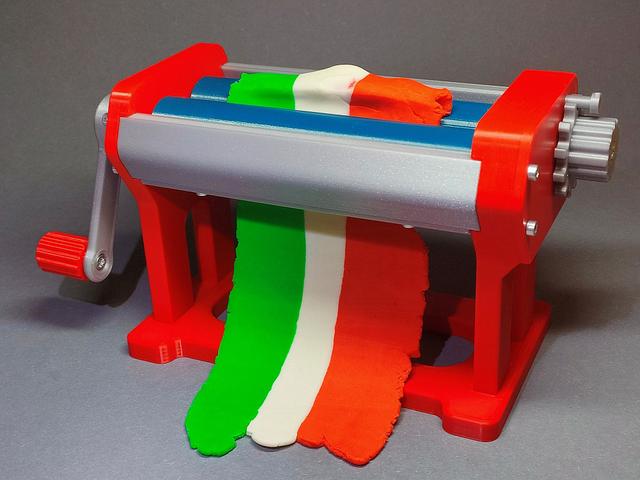

Clay Press Machine - Suitable for Polymer Clay, Play Doh, Fondant Tested on Super Sculpey polymer clay, which has a stiff consistency, and on Play-Doh, which is soft. Rolls forms clay from 2mm to 5mm thick adjustable using the aretation ring . One pressure roller is fixed and the other moves closer or further. Clamp included for mounting on a table 📷 Image redacted — claim this model to add your own media Assembly instructions - video Required material 12 X M3x25mm For frame 2 X M3x10 mm For fixed blade 2 X M3X20 mm For the moving blade 2 pcs pen springs For the moving blade 3 pcs bearing 21x15x4mm 3 wood screws 3,5x12 mm for handle, aretetion ring and knob Insert a 13 mm nut into the M8 bolt clamp. Printing recommendation: The parts are mechanically very stressed, I set the printing parameters: 4 perimeters, 50% infill, on the rollers 7 perimeters + collar. When printing the rollers I used Scarf sems so that the seam was not so pronounced and did not print the pattern on the printed material. Added parts for the version without bearings-Leg A,Leg B,Handle,Fix axle.I recommend lubricating well !! I printed the cylinders and gears from Petg Assembly instructions are in pictures and video 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media
