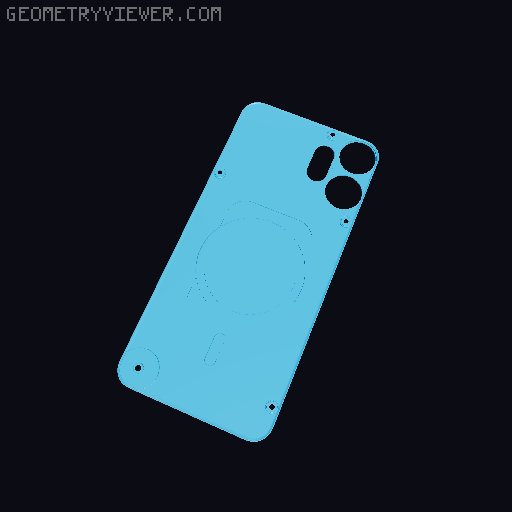

CMF Phone 2 Pro metallic backplate 3D model thumbnail

CMF Phone 2 Pro metallic backplate

by BahnR · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY
Triangles196.9k
UploadedMay 25, 2025
⬇ 15 downloads ❤ 4 likes 👁 531 views

Description

Hello everyone! To the Universal Cover, i added some recesses for a metallic backplate, so you can attach them in your magnatic phone holders, for example this one . The original magsave is still available and usable. The dimensions of the metallic backplates, that you can insert, should be 0,5 mm thick and should have following dimensions: round backplate square backplate ⌀ 40 mm45 x 65 mm with r = 10 mm edges 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media Recommended print settings: I printed it with PETG. You can try some other filaments too! Layerhight 0,2 mm, first layer 0,24 mm Infill can be 100% for more stability perimeters: 3-4 supports are needed If there are other dimensions for the metallic plates, feel free to comment, i can add other versions! All credits to CMF and a big thanks for making this contest possible! Just for note, the bottom right utility screw is not screwed in, it just lays there for the look. The screw is to short to fit. Works great in my car, see the photos! Have fun with it and happy printing!
case phone backplate nothing nothingphone cmf cmfbynothing phone2pro cmfphone2pro
