cmf phone cyberdeck

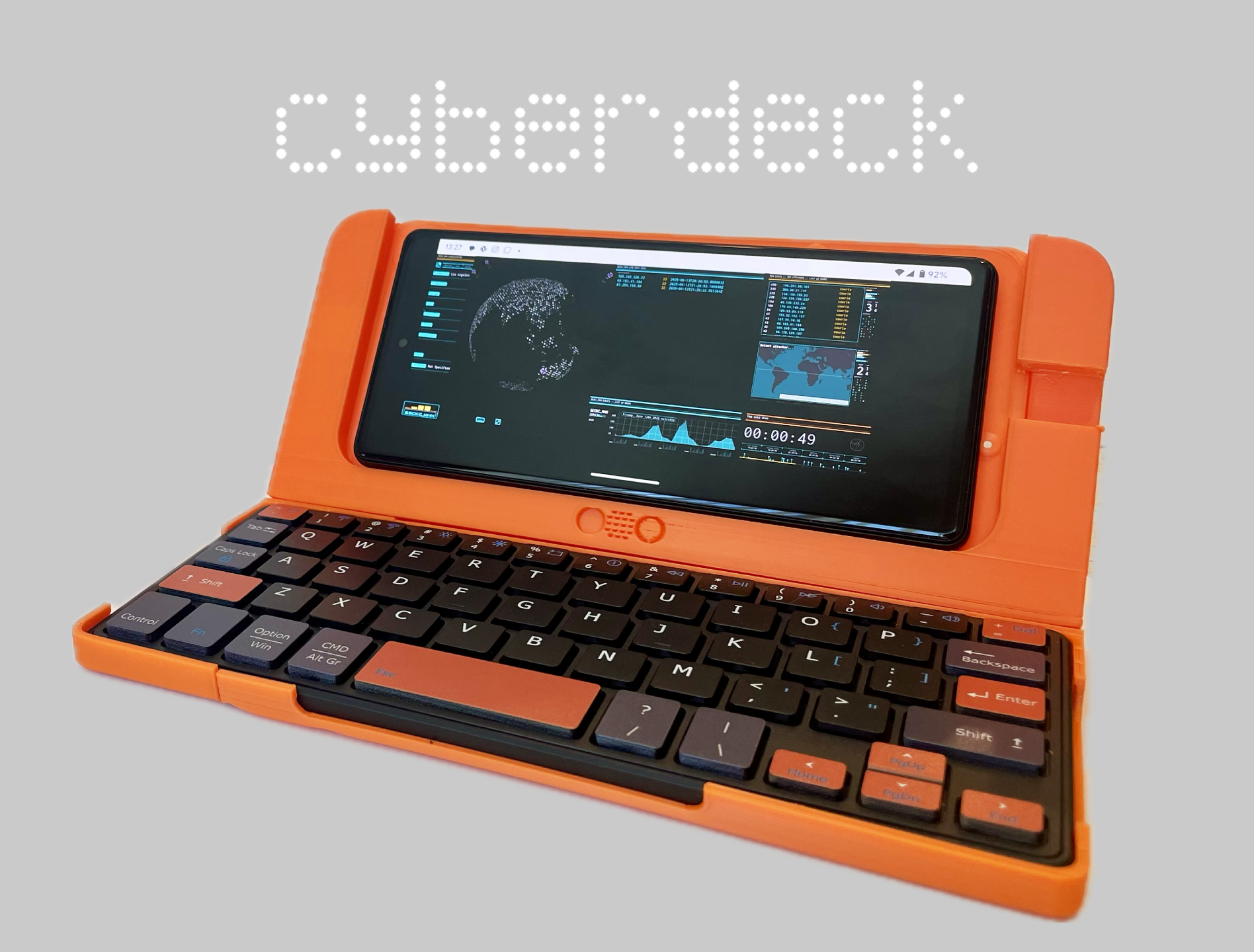

Do you want to make your phone feel futuristic? Introducing the cmf cyberdeck! Featuring a full tactile keyboard and seamlessly integrated phone rail, this case turns your phone into a portable workstation. The phone case features 3mm rails that allow for easy insertion and removal into the cyberdeck frame. The rails are barely noticeable during everyday use. Magnet rings are integrated into the phone case, which allow for hotswappable accessories like battery packs or signal boosters. The cyberdeck frame features a cutout for your charging cable so your phone never runs out of power. The keyboard snaps into place and is Bluetooth. Parts needed magnet ring from Amazon - $10 bluetooth keyboard - $29 I cut off the magnetic cover on this keyboard 1 2.5x4mm screw to replace the thumb screw nothing used. Printing The phone case needs to be printed at 0.15 layer height or below otherwise you get a very thin cut out for the magnet ring. It also needs support for the screw holes. All other parts can be printed at 0.2 or 0.25. Use snug supports for the top cutout. I printed this on a Prusa Mini. The top part prints diagonal on the print bed. I had to split the bottom in half to make it fit. You could probably print this all in one piece if you're brave enough. Special thanks to @TobiasStanzel_360119 for providing the phone case fusion file. Designing everything from scratch would have been a pain. Special thanks to @sgordienko_2001418 for inspiring this build and providing the keyboard dimensions! This is my first ever printables project. I picked up 3d modeling just for this contest. It's been a crazy 3 weeks.
