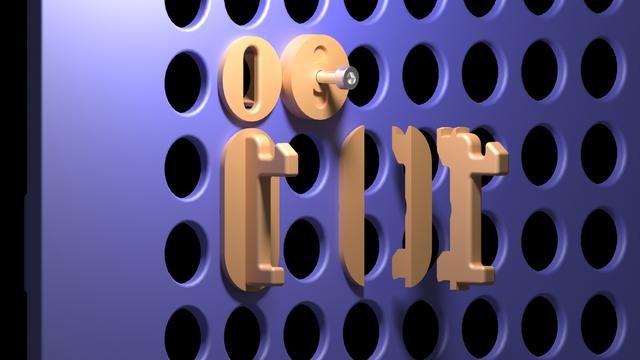

Cooler Master QUBE 500 - IKEA SKÅDIS Adapters

There are plenty of models for IKEA SKÅDIS, directly or with adapters. Since the pitch of SKÅDIS and Cooler Master QUBE 500 are compatible (20-40mm), with these adapter we can use most of them. from https://www.printables.com/es/model/228663 we take the image 📷 Image redacted — claim this model to add your own media I had better results with PETG, since it is a little more flexible than PLA. For testing we use the useful holes test Universal Hook This part uses the sample holder . The one piece support cannot be printed without supports then there is the UniversalHookSlim version, which is easier to print. Only with the central part is enough, but side inserts, are provided. There are versions with a 0.5mm tolerance. 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media T-nut Adapter This part uses the sample holder . If we want to use Models for T-NUT or whatever that fixes with screw, we can use these models There are versions for M2, M2.5 and M3. There are also versions with tolerance. The metallic nut is placed in the rear side as shown in the figures. 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media In spread sheet, we can modify parameters for other models parameterdescriptionvaluescrewDiamdiameter for the screw2.5wrenchside to side distance of the nut (M2=4, M2.5 = 5, M3 =5.5)5toltolerance0.3 I Have tested with my model Customizable Conduit electric tube clip 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media SKADIS hole adapter The third proposal is to adapt the hole to be like the SKADIS one, this is not possible, since the SKADIS has a Length of 15, and Cooler Master is 14.4. In many situations it could work. The deepness in SKADIS is about 4.5, since the QUBE 500 is 2.7, the models ring is 1.8 wide to match this value. 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media 📷 Image redacted — claim this model to add your own media
