Core One MMU3 community version - rewind spool remix

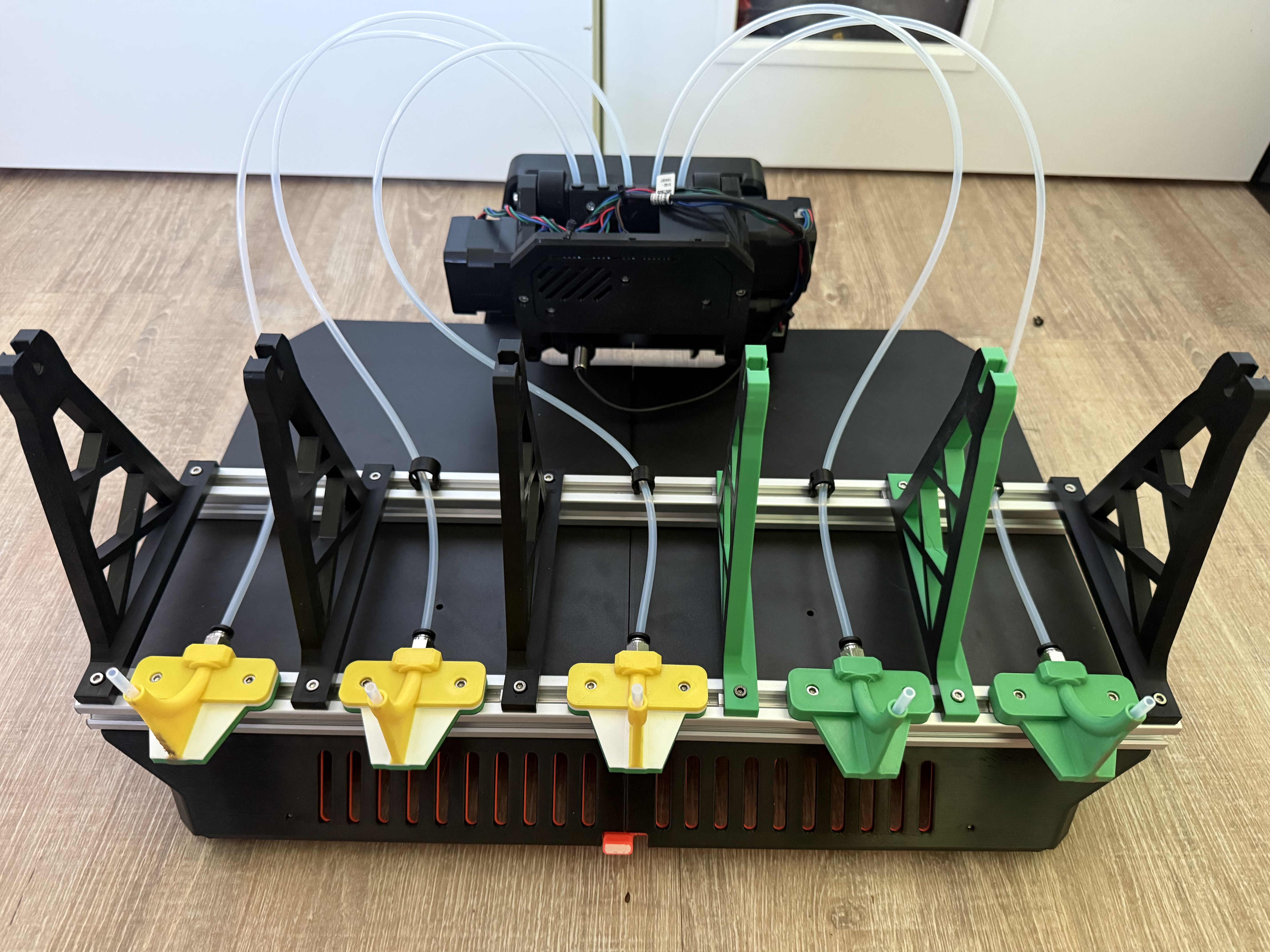

Hey all, Here is my remix on the Prusa CORE One MMU3 Community version von Prusa Guy and combine it with the incredible MMU3 / MMU2S 5 Spools auto rewinder adapter for (un)original Prusa drybox / Repbox von Sanka . I really like the MMU3 core one setup, but the spoolholders and the buffer are not working well for my purpose. I am still in test mode, but I already run it for 60h+ and it works awesome. Let me know if someone have a good idea to replace the aluminum profile with a full printed part. So then you can print everything and mount it with some screws. Thanks to all designers of the inspiration and effort that went into the design. Instruction: Print all MMU3 community version parts and replace the two front plates with my design. (Drill a hole into the normal ones would be my recommendation. Use the 4 M3x8mm and T-slot nuts to connect the alu profil with the top plates. mount everything on top as shown in the picture and connect the PTFE tubes. Happy printing. BOM 2x 450mm Aluprofil 2020 - https://s.click.aliexpress.com/e/_c4mOl6fT 26x T-slots nuts 2020 M3 - https://s.click.aliexpress.com/e/_c4cXnBS5 22x M3x10 - https://s.click.aliexpress.com/e/_c4DMLFVx 4x M3x8 - https://s.click.aliexpress.com/e/_c3peHKBj 5x 10mm PTFE connector - https://s.click.aliexpress.com/e/_c38L437P MMU3 cable extended (you can simply extend your current ones with 26 – 24 AWG solder connectors) In addition you have to print: 5x Rewinder disks remixed: https://www.printables.com/model/1064575-rewinder-disks-remixed 5x Spool Auto Rewinder Body Solid: https://www.printables.com/model/948077-spool-auto-rewinder-body-solid 5x (un)original Prusa Drybox Auto Rewinder Axle Remix: https://www.printables.com/model/818329-unoriginal-prusa-drybox-auto-rewinder-axle-remix 5x Transversal wire management clip for 2020 profile https://www.printables.com/model/125555-transversal-wire-management-clip-for-2020-profile and of course the parts from the: Prusa CORE One MMU3 Community version von Prusa Guy Have fun!
