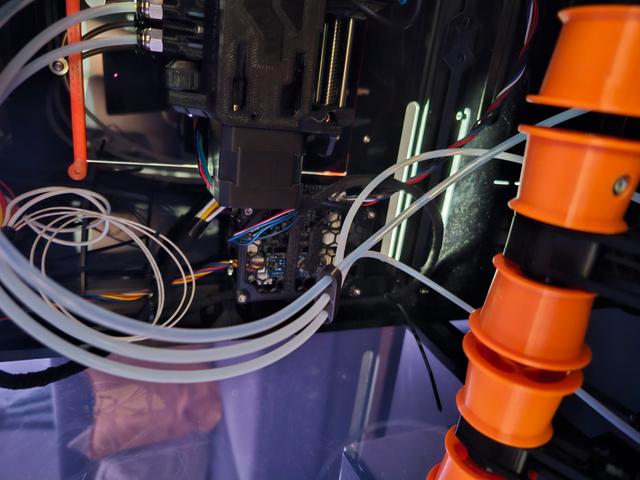

COREBOXX Semi-smart PCB mount with top cover and zip ties

To be sure, that some spool will not damage the main PCB of the SEMI-Smart addon, I have created this cover and also added space for four zip ties on it, so you can organize cables better. For now it is only prepared, waiting for the PCB to arrive, I will update pictures afterwards. On top of original pcb mount you need only four more M3x6 (or longer) screws. In case of changing it for older one, 7 heat inserts is needed like for original version. In case that you would like to use the zip ties, you will need up to four pieces. It is important to put them there before installing it to the COREBOXX and set the end part (bigger part) almost to the printed part. I have published the version now, because someone during preparation for the semi-smart addon could start printing the parts. Update 22.07.2025 - Extend the columns between main pcb and cover by 10mm. Those who already printed the previous version can download “spacer”, which is 10mm long, but you will need to use screws at least 14mm long (spacer 10mm + 1.9mm + some mm to grab the main pcb part)
