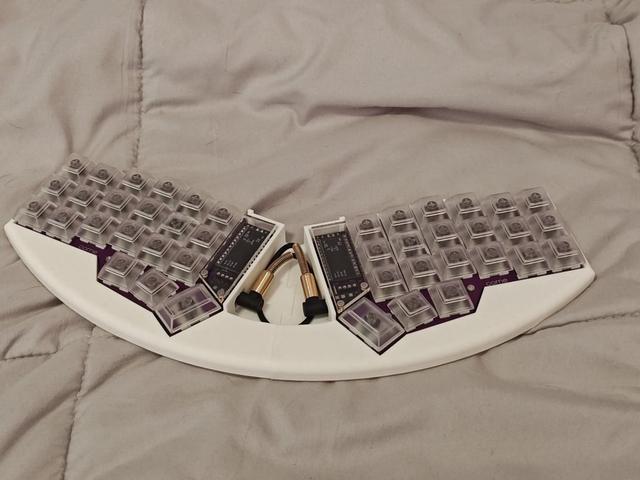

Corne/CRKBD Low-Profile Unibody Case 3D model thumbnail

Corne/CRKBD Low-Profile Unibody Case

by ddraguicevich · via Thingiverse
FormatSTL
CategoryMechanical
LicenseCC BY-SA
Triangles43.0k
UploadedApr 8, 2026
⬇ 9 downloads 👁 32 views

Description

Been looking for a low-profile unibody case for using my corne in my lap (a bit like an alice keyboard in this instance but more compact and ergonomic) and found the awesome cyberdeck-stlye setup from a8ksh4. I didn't need the tablet support so I removed it. You will likely need to split this case for printing, here's the onshape link in case you want to tinker that way: https://cad.onshape.com/documents/e14ea9659d4511daeeb7c6c1/w/fc1fe06da0f2e85699f62d37/e/1644d8000f4025b34dfb22db?renderMode=0&uiState=69d67b350df0076e751d6707 You will need a short 3.5mm connector with 90 degree ends unless you tamper with spacing NOTE: This is for corne/crkbd v3 and earlier it will NOT work with v4/v4.1 This build requires some M2 screws (same as original). I think I used 8mm, countersink is preferred especially if you use low-profile switches Ideas to improve: The top edge is rough and could be smoothed some It might be possible to include a palm rest or even a detacheable one (I wanted this one compact to live in a laptop bag) It may be possible to fit a small touchpad in-between the two halves, especially if the spacing is meddled with. Newer corne cases have suppport for the keyboard PCB at the corners of the case, this may be worth adding for stability as it sits on the screw mounts right now Printing: Material: Works fine in PLA or whatever you prefer Infill: Tested at 15% Support: Not necessary Layer Height: Worth printing at 0.08 due to slight slope but you might be able to print at 0.2 Size: This print may not fit on your bed; I split mine with the dovetail in-slicer and printed it as two halves. I leave it to you to decide as I don't know your printer
corne crkbd crkbd ergonomic Keyboard tray mechanical keyboard split keyboard split keyboard case
