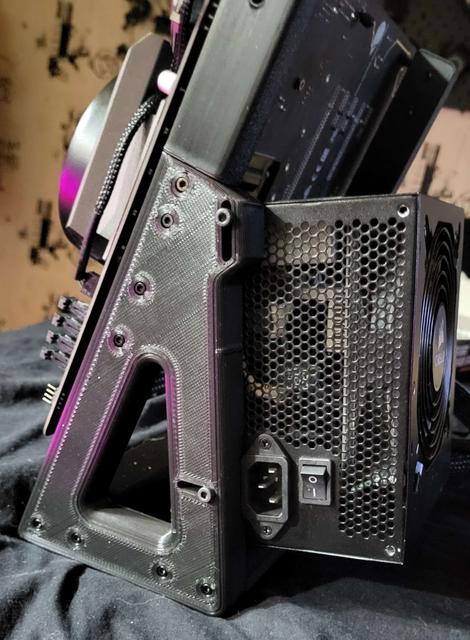

Corsair PSU Frame Fit 3D model thumbnail

Corsair PSU Frame Fit

by MagniModels · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles4.0k
UploadedMay 15, 2024
⬇ 47 downloads ❤ 8 likes 👁 682 views

Description

Upon printing the original model of the frame that holds the PSU, I noticed the screw holes would not line up at all with the Corsair PSU I had, so I went and made a few differences. I do not know if it will fit every Corsair PSU, you can check by printing the first layer or two and see if it fits if you're unsure. It's made to be slightly angled instead of sitting entirely vertically. Also, at least in my case, M3 screws were too small for the PSU screw holes. I had to use M4 which were a bit too big but with some screwing fit in. M3.5 might be the sweet spot.
case corsair atx
