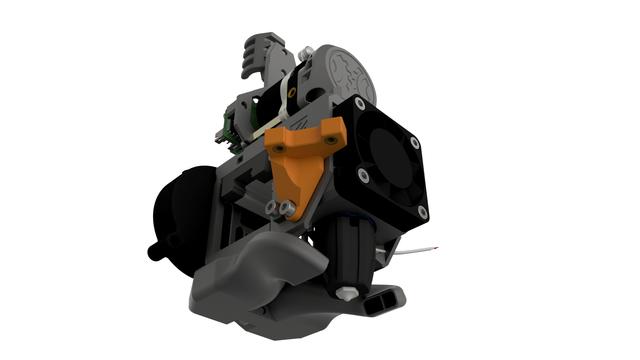

CR Touch Mount for E34M1

Installation and use should be fairly straight-forward. This mounts to the E34M1 toolhead and is for use with the CR Touch ABL probe. My design basis was the Phaetus Rapido hotend (not UHF). The probe should sit ~3mm above the nozzle in the retracted position. When extended ~3.6mm below. This may be able to work for other hotends with similar offset in the E34M1. I would probably keep it within +/- 1mm on Z offset. I angled the CR Touch to try to minimize the X and Y offsets. X Offset: 34mm Y Offset: 13mm 📷 Image redacted — claim this model to add your own media Hardware Requirements: M3x5x4 (Voron Style) thread inserts, qty=2 M3x6mm socket cap screws, qty=4 CR Touch Probe Suggested Print Settings: Layer Height: 0.2mm Infill: 30% Supports: Not required
