Craftsman Compound miter saw (Model 315212340 ) dust-port elbow (part number 511518000) 3D model thumbnail

Craftsman Compound miter saw (Model 315212340 ) dust-port elbow (part number 511518000)

by unwise · via Thingiverse
FormatSTL
CategoryArt
LicenseCC BY-NC
UploadedMar 21, 2026
⬇ 10 downloads ❤ 1 likes 👁 16 views

Description

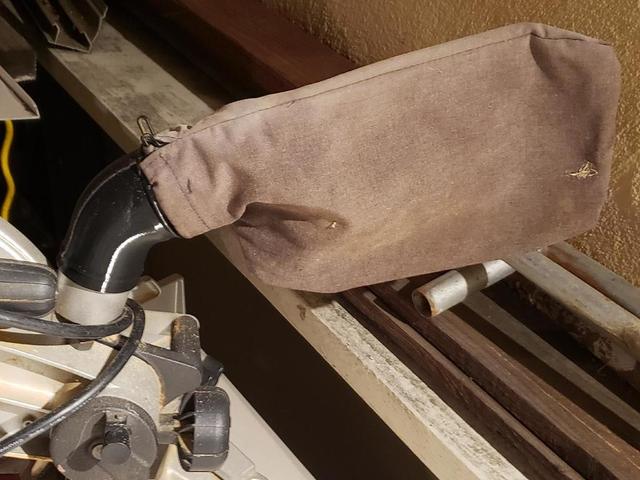

This is a replacement for the original 45-degree dust-port elbow adapter which connects the outlet port on the chopsaw to the little dustbag. I've still got the original part but it's never really been a good fit on the saw, forever detaching. So I designed this one to be printed in TPU. It needs a flexible filament because there'd be no way to push it into place otherwise. It's a snug, snap-into-place fit on the port. Push fit. No way is this one coming loose accidentally. The part's flexibility is also a big plus if something knocks the bag or connector. For printing, it's best to print it large-side down, angled so the other end is horizontal, to reduce support. Yes, it needs support!

Originally published on Thingiverse
