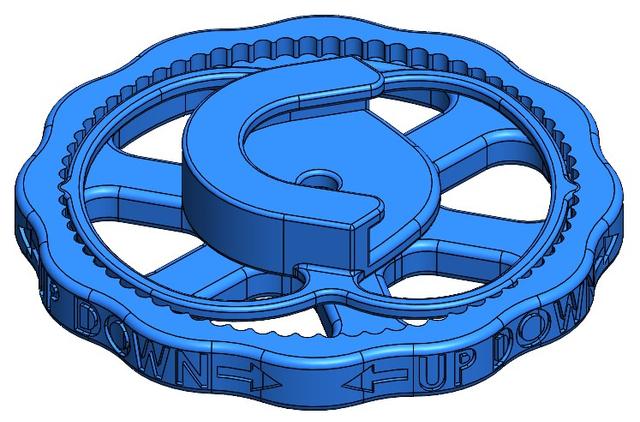

Creality CR10 - Locking Bed Level Knobs 3D model thumbnail

Creality CR10 - Locking Bed Level Knobs

by AJCam44 · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles55.6k
UploadedApr 23, 2023
⬇ 353 downloads ❤ 39 likes 👁 1.5k views

Description

Locking bed leveling knob for the Creality CR10. This design has snap features that keep the knob in place during/in between prints; so no more vibrating out of position or accidentally nudging the knob. The snap features also give tactile feedback so you know how much you have raised/lowered the bed; with this geometry, 1 click will raise/lower the bed .01mm. This uses the same wheel from my original model that can be downloaded from the link below. Additional instructions can also be found there - https://www.printables.com/model/422895-ender-3-s1s1-pro-locking-bed-level-knob Shout out to @tyler_280669 who requested the remix and provided the dimensions of the Y plate of the CR10. Let mw know if there are any problems with the model, as I haven't handled this with the CR10 and was only relying on second hand info to design it.
