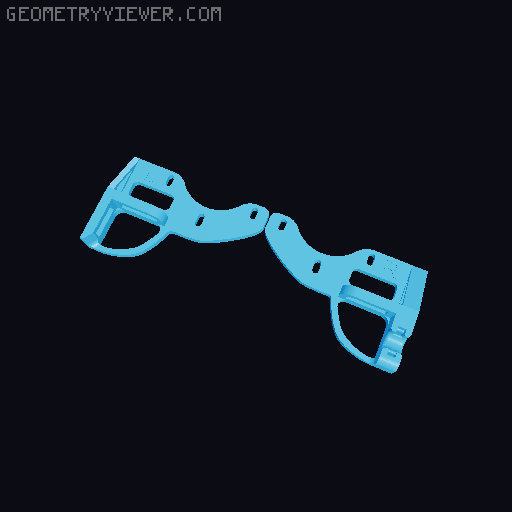

Creality Ender 5 Build Plate Guide for PEI or glass W/ strain relief 3D model thumbnail

Creality Ender 5 Build Plate Guide for PEI or glass W/ strain relief

by Mindless_Rutabaga · via Thingiverse
FormatSTL
CategoryArt
LicenseCC BY-SA
Triangles4.8k
UploadedApr 3, 2026
⬇ 21 downloads 👁 23 views

Description

Remix from Creality Build Plate Guide for PEI or glass W/ strain relief as the original was too high for a PEI build plate and would hit the toolhead on large prints. I also increase bold hole size to allow for easier install and removed some material for faster print time and using less filament. This will fit PEI or Glass Plates and also includes a hole for the strain relief as it wouldn't fit easily and required me to push on the cable to get it in place. I love this design and thank you to ILoveBoobies for the initial design! Print Notes: Print with at least PETG - DO NOT PRINT WITH PLA as the heat plate may melt brackets Set infill to 20% Use Tree Supports with Build Plate Only Options in Slicer Install Notes: Install one side at a time. Remember to set z-offset after installing Note: If using Orca Slicer I included additional strengthening around bolt holes - I'm not sure if other slicers will include this modifier
build plate guide Creality Ender 5 Ender 5 accessory Ender 5 Build Plate Guide Glass Build Plate Guide PEI Build Plate Guide
