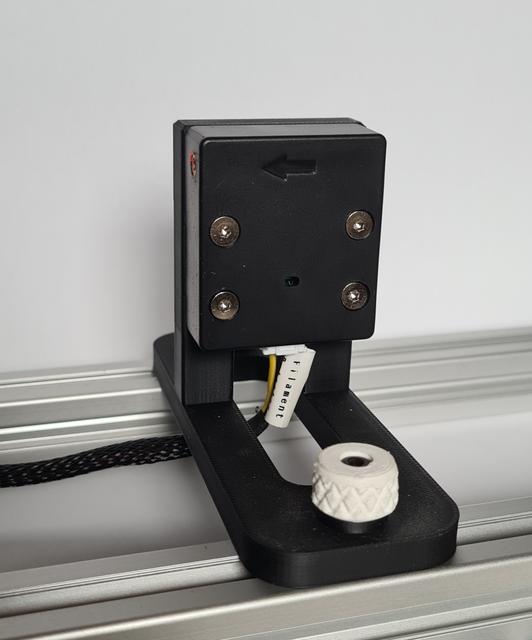

Creality filament sensor holder 3D model thumbnail

Creality filament sensor holder

by ChaotiK DawN · via Printables
FormatSTL
CategoryGadgets
LicenseCC BY-NC
Triangles1.7k
UploadedAug 5, 2023
⬇ 93 downloads ❤ 11 likes 👁 672 views

Description

Because my filament sensor was brand new and the sensor itself looked good enough I didn't want to take it apart. I designed a bracket to put the sensor on, so I could mount it on the 2020 profile used in the filament rewinder This bracket is for Creality Ender 3 V2 Smart Filament Sensor ( https://www.amazon.com/Original-Creality-Filament-Detection-Detector/dp/B099ZT1KNY/ref=sr_1_1_sspa?crid=3PEBWHQLRGSTT&keywords=Creality%2BEnder%2B3%2BV2%2BSmart%2BFilament%2BSensor&qid=1691224410&sprefix=creality%2Bender%2B3%2Bv2%2Bsmart%2Bfilament%2Bsensor%2Caps%2C346&sr=8-1-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1 ) Needed parts to complete this bracket : 4x Heat Threaded Insert M3 4-6mm OD 4.5-5mm To install on the 2020 profiles used in filament spool rewinder you'll need : 2x Screws M3 20mm 2x Nuts M3 2x Knob M3 Stand (from this design https://www.printables.com/model/479022-stand-for-bambu-lab-filament-spool-switcher-winder )
