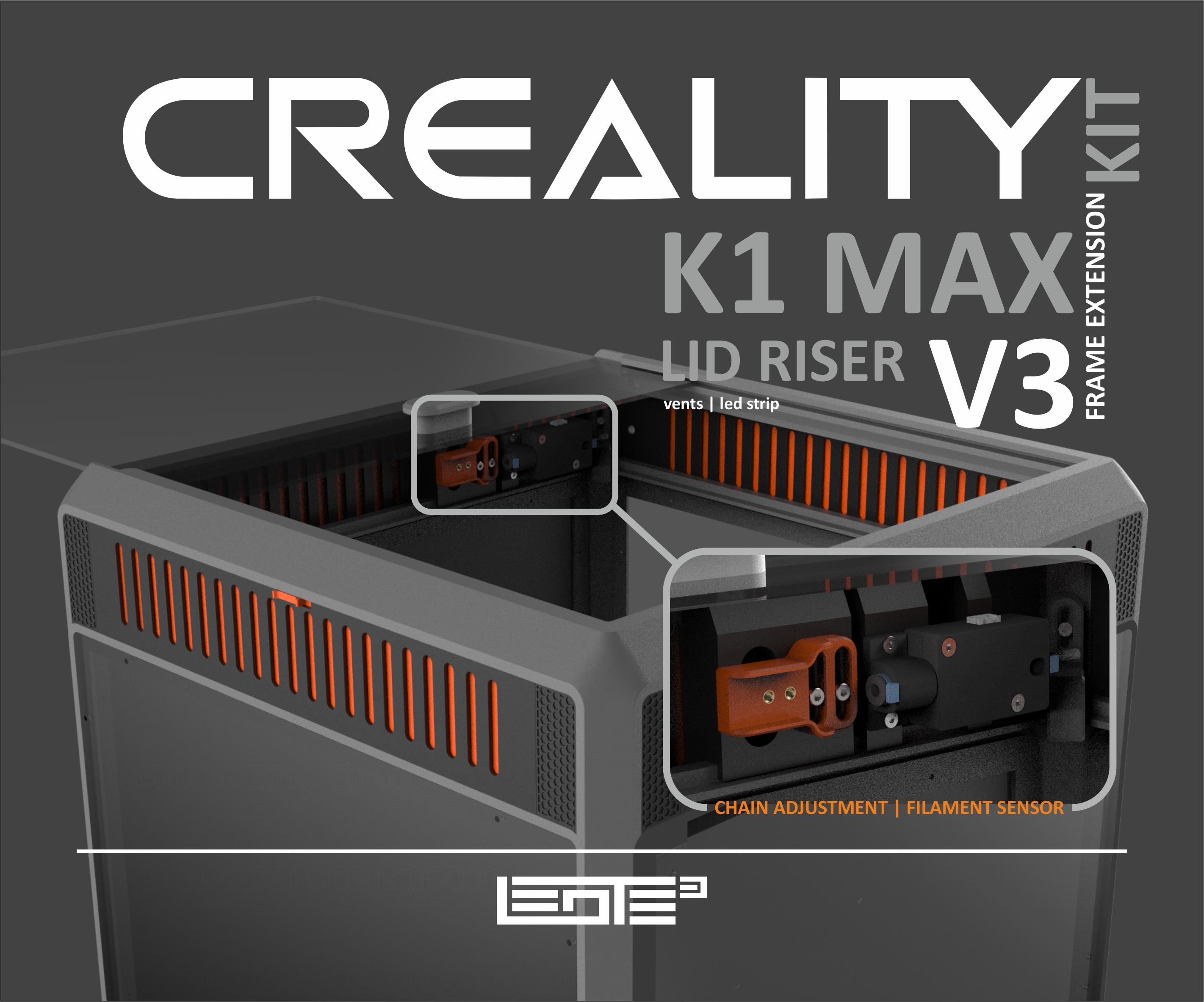

CREALITY K1 MAX - LID RISER V3 [FRAME EXTENSION KIT]

LID RISER V3 [FRAME EXTENSION KIT] | Vents | LED Strip | Hinges *If you have any issues with printing or assembly, feel free to message me, and I'll do my best to assist you 😉. /////ATTENTION *Because of the seam inside the walls, the internal space is reduced. To clean it up, use scissors or a similar tool. Simply insert the scissors into the wall and go back and forth a few times until it feels cleaner and there’s no more resistance. This will ensure the vents will slide. *If it's difficult to slide the pieces together, use a metal file to clean the rails, especially on the wall pieces. This minor adjustment can make a big difference. The fit is meant to be snug, so the pieces aren't loose. I had to do this with some of my pieces. Some fit perfectly, while others were tight, likely due to the printing process. Just file the rails a few times, and they should fit perfectly. *Thanks to theluks10 for providing the measurements needed to create it. ______________________________________________________________________________________________________________ /////LINKS FOR THE HARDWARE USED IN ALL MY PROJECTS * affiliate links INSERTS M3 x 4mm (L) x 5mm (D): https://amzn.to/3EovAVw HEX SOCKET CAP M3 6mm-30mm (STAINLESS): https://amzn.to/4imGAQW HEX SOCKET CAP M3 6-20mm (BLACK): https://amzn.to/3R7wjx4 FLAT HEAD SOCKET CAP M3 4mm-12mm (STAINLESS): https://amzn.to/3G3Z1wr FLAT HEAD SOCKET CAP M3 8mm-25mm (BLACK): https://amzn.to/43JeThP FLAT HEAD SOCKET CAP M3 6mm-16mm (BLACK): https://amzn.to/4kRgQNP LED CONNECTOR - JST-XH 2.54mm 1S 2 Pin Balance Plug: https://amzn.to/3YrGG2C ________________________________________________________________________________________________________________ /////THINGS TO ADD PTFE GUIDE - LINK https://www.printables.com/model/1158003-creality-k1max-ptfe-tube-guide-for-k1max-lid-riser 📷 Image redacted — claim this model to add your own media /////UPDATE 0.7 11/06/2025 NEW FRAME OPEN SLIDER and AIR BLOCK * First, I want to thanks @byseven_47370 for pointing out this issue and sharing the initial measurements. Also, a big thanks to @Dalemac_1314752 for the constant support and for helping me shape the best possible solution. This would not have turned out the way it did without his input. 📷 Image redacted — claim this model to add your own media The screws on the glass handle made it necessary to open a clearance in the frame, so the glass can slide freely without hitting the riser. To solve this, we created a new frame part with the required cut out. To keep the chamber sealed, we also designed an insert that closes the opening when the lid is shut. The insert mounts directly onto the glass and is secured using the same screws as the handle, so no extra hardware is needed. NEW PARTS: [a]_x1_K1max_V3_FRAME_SLIDER_OPEN_air_block.stl [a]_x1_K1max_V3_FRAME_SLIDER_OPEN_V2.stl 📷 Image redacted — claim this model to add your own media /////UPDATE 0.7 18/03/2025 NEW BACKWALL VERSION - Corrected the filament sensor mounting points. In the previous version, the sensor's mounting points were inverted. /////UPDATE 0.6 27/01/2025 NEW WALL CORNERS - The tolerance of the fit between the wall corners, the frame, and the walls has been updated. This revision makes the assembly process simpler. File names: [b]_x1_K1max_V3_WALL_CORNER_R_PTFETUBE_HOLE [b]_x4_K1max_V3_WALL_CORNER_R (3x with the chain adjustment) [b]_x4_K1max_V3_WALL_CORNER_L /////UPDATE 0.3|26-01-2025 CREALITY K1max PTFE TUBE GUIDE for K1max LID RISER V3 - FRAME EXTENSION KIT LINK: https://www.printables.com/model/1158003-creality-k1max-ptfe-tube-guide-for-k1max-lid-riser 📷 Image redacted — claim this model to add your own media /////UPDATE 0.2|08-01-2025 New Back Wall with the chain adjustment and filament sensor mounting points. Parts to print: [b]_x1_K1max_V3_WALL_BACK_CHAIN_ADJUSTMENT (with vents) [b]_x1_K1max_V3_WALL_BACK_CLOSE_CHAIN_ADJUSTMENT (without vents) [b]_x1_K1max_V3_WALL_CORNER_R_PTFETUBE_HOLE [c]_x1_LID_RISER_K1max_CHAIN_ADJUSTMENT_V2 📷 Image redacted — claim this model to add your own media /////UPDATE 0.1 | 21-12-2024 New frame system - Top Glass Slider *A ZIP file with all the parts needed to print this version is now available. K1max_V3_TOP_GLASS_SLIDER.ZIP Parts to replace: [a]_x1_K1max_V3_FRAME_BACK → [a]_x1_K1max_V3_FRAME_SLIDER_OPEN [a]_x3_K1max_V3_FRAME → [a]_x1_K1max_V3_FRAME_SLIDER_FRONT [a]_x3_K1max_V3_FRAME → [a]_x1_K1max_V3_FRAME__SLIDER_L [a]_x3_K1max_V3_FRAME → [a]_x1_K1max_V3_FRAME__SLIDER_R [a]_x4_K1max_V3_FRAME_CORNER → [a]_x2_K1max_V3_FRAME_CORNER_SLIDER [a]_x4_K1max_V3_FRAME_CORNER → [a]_x1_K1max_V3_FRAME_CORNER_SLIDER_L [a]_x4_K1max_V3_FRAME_CORNER → [a]_x1_K1max_V3_FRAME_CORNER_SLIDER_R 📷 Image redacted — claim this model to add your own media /////IMPORTANT Before starting the print of the riser, I recommend printing this tool https://www.printables.com/model/899470-xyz-accuracy-test-calibration-tool to test the dimensional accuracy of your printers. Use this tool https://www.printables.com/model/480907-shrinkage-calculator-dimensional-calibration-tool to determine the correct scale based on the filament shrinkage you’ll be using. The riser pieces were developed with very tight tolerances (0.2mm) to ensure proper alignment and functionality of the assembly, so it’s important to make sure everything is well-calibrated or that you understand what is needed for everything to work correctly. Check this video for fine-tuning filament settings and dimensional accuracy: https://youtu.be/7BUJLbQUABY?si=EGsZtkVig8zLeMMX /////Material quantity by color [a] - 293.9g [b] - 318.92g [c] - 96.57g ///// ZIP FILE and INSTALLATION MANUAL Scroll to the bottom of the download page to find the ZIP file containing all the files and the installation MANUAL. /////All files are labeled with material/color and quantity [a] - ABS or similar material | Color 1 [b] - ABS or similar material | Color 2 [c] - ABS or similar material | Color 3 [ The vents [c] can be printed in a different material - PLA ] [ Do not print the hingeS, use a more heat-resistant material ] x(number) - number of parts to print
