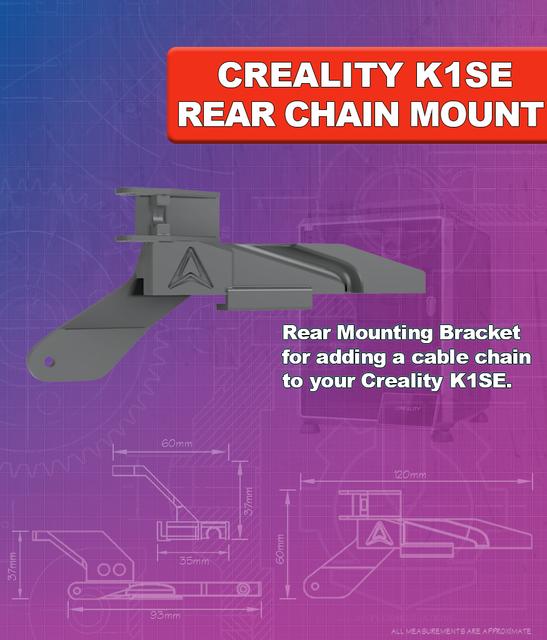

Creality K1 SE Rear Cable Chain Mount

This is a remix of pererry’s Creality K1 SE Cable Chain Mount , which served as the foundation for this design. 📌 QUICK OVERVIEW • Designed for Creality K1 SE • Enables clean cable chain routing similar to the K1C • Replaces the stock cable/PTFE arch with controlled routing • Allows use of risers and top covers • Works as part of a multi-model cable chain solution This remix focuses on improved wire routing, mounting strength, and long-term durability while maintaining compatibility with the original concept. If you prefer the original design approach, I encourage you to check out the original model as well — it’s a solid solution. This model is designed to be used alongside the following for a complete cable chain setup: • Creality K1 Cable Chain Sagging Fix by ViniS • Cable Chain Link with PTFE tube Guide by C3D Garage • Creality K1SE Chain Link Riser by Protius ( shameless self promotion ) 🔧 PRINTING NOTES Printed examples were done in PLA, but PETG or ABS may also be used if preferred. Recommended settings: 0.4 mm nozzle Standard layer heights (0.2 mm works well) Default wall and infill settings Supports: • The main bracket and screw cover should be printed with supports . • The rear support bracket and chain link can be printed without supports . 🔩 REQUIRED HARDWARE Main Bracket: • (2) M3 x 5mm Heat Set Threaded Inserts Rear Support Bracket: • (1) M3x10mm Flat Head screw (replaces factory screw to attach it to the frame) • (2) M3x10mm Round or Cap Head screws to attach to the Main Bracket.
