Creality K1C - Silicone Nozzle Cleaner Holder - for BootyCallJones Linear Gantry Mod

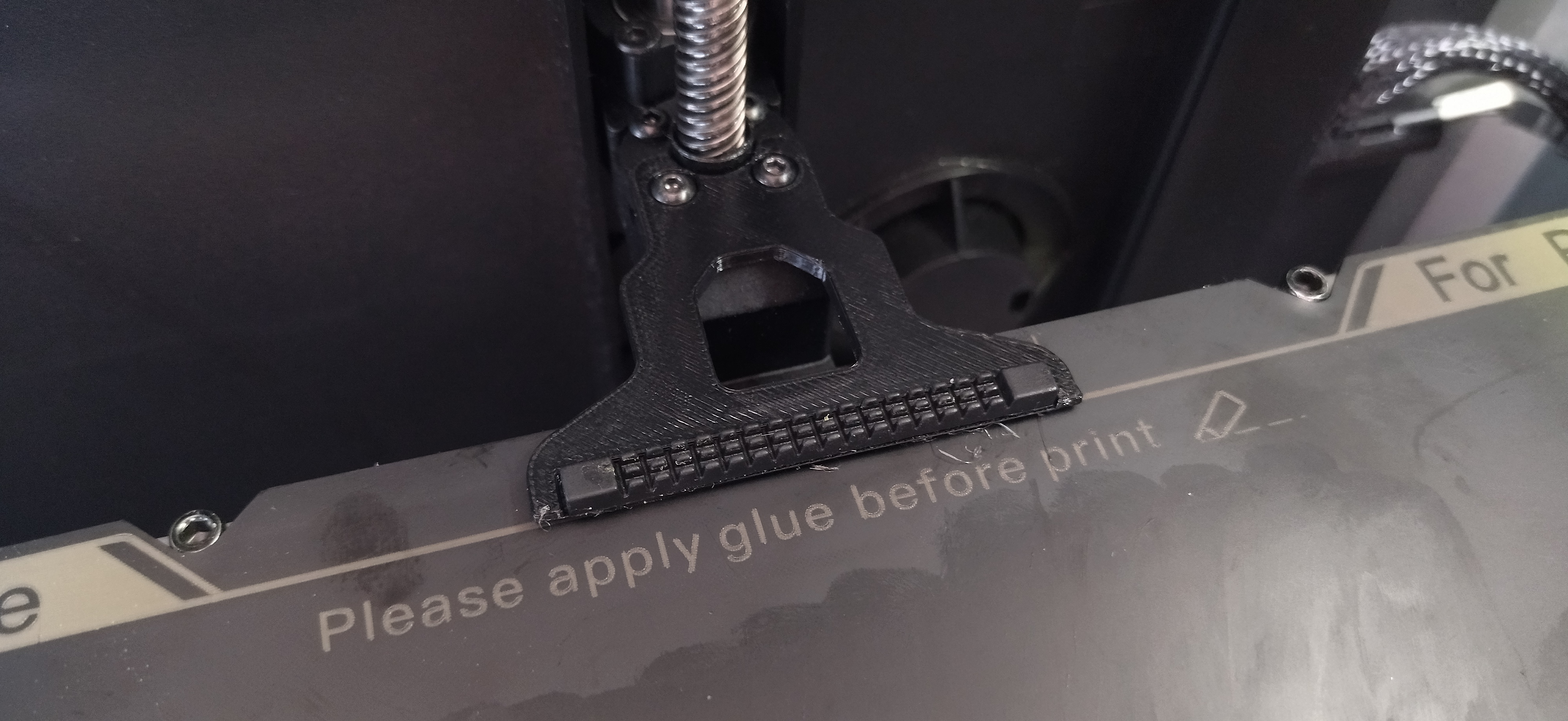

With Bootycalljones' Linear Gantry Mod , the motion ranges change slighty and the original brush location can not be reached anymore. This version of Gero's excellent brush holder places the brush 6.5 mm further inwards so it can be reached by the printhead. The original brush is only held on by double sided tape, pry it off the print bed and slap it on your holder. To tell the printer the new brush location, edit the following line in your printer.cfg [prtouch_v2] clr_noz_start_y: 220.5 For the new motion range when installing the BCJ linear gantry mod i already had those limits set in my printer.cfg: [stepper_y] position_endstop: -0.5 position_min: -0.5 position_max: 221.5 Note I did not use the y values ("subtract 2") from the Linear Gantry Assembly Guide - Section Software Changes, because my printer (K1C) already crashed into the back at 222 mm. Adjust the exact y values to fit your printers motion range.
