Creality Space Pi (Plus) Connector 3D model thumbnail

Creality Space Pi (Plus) Connector

by makko · via Printables
FormatSTL
CategoryArt
LicenseCC BY-NC
Triangles22.2k
UploadedAug 9, 2025
⬇ 66 downloads ❤ 19 likes 👁 661 views

Description

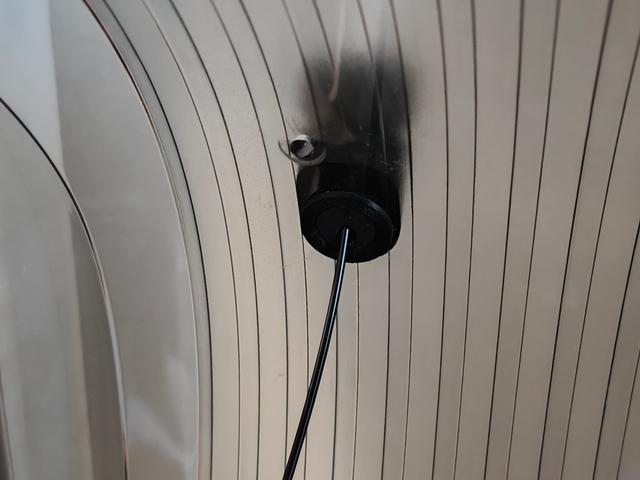

I wasn't happy with the original filament location of my Space Pi Plus, it's just too cumbersome to thread the filament through the front roof with my sausage fingers. I used 2 readily-available models as a basis, but i combined the two and changed few things, so now you can put a new connector straight to lid and atleast for me, it's so much easier to put filament in now! I printed the parts like they're in the STL. Use a filament that withstands the heat, ABS or ASA or something. Included also a small spacer that you can put inside the lid if you want to make the install a bit prittier, but it's not required. As with the original model, this requires drilling a hole to the lid, so some modification is required. 12mm hole, otherwise same measurements: 20mm below the top of the ventilation hole and 47.5mm (middle of the raised rib) in from the edge of the lid. I don't see why this wouldn't also work on the regular Space Pi, but measurements might wary a bit. Double-check that it's centered!
adapter ptfe connector
