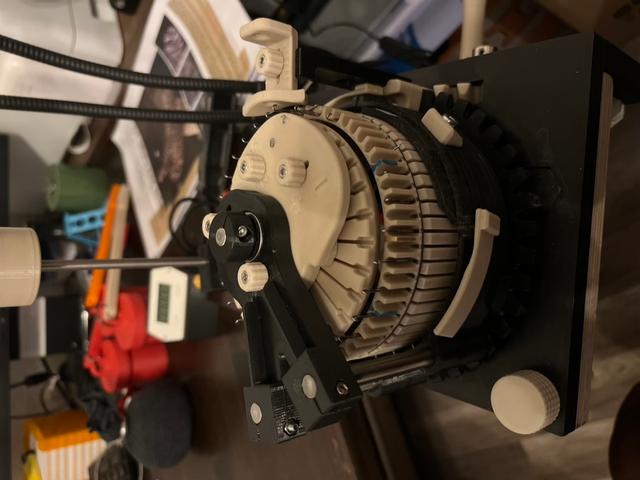

CSM camshell for side-mounted ribber arm (original cam) 3D model thumbnail

CSM camshell for side-mounted ribber arm (original cam)

by pandel · via Printables
FormatSTL
CategoryTools
LicenseCC BY-NC-SA
UploadedJan 8, 2024
⬇ 67 downloads ❤ 10 likes 👁 768 views

Description

OLDER VERSION - ONLY USE IF YOU WANT TO STAY WITH ORIGINAL TENSION CAM FIXTURE! BETTER VERSION WITH EASIER TENSION CAM ADJUSTMENT: https://www.printables.com/de/model/712571-csm-camshell-upgrade-for-side-mount-ribber-with-ea NEWER VERSION ALSO FIXES THE PRINTING ISSUES SOME PEOPLE HAD WITH THE CAMSHELL! ALL CREDITS GO TO BILL GIBSON FOR HIS INCREDIBLE WORK ON REBUILDING THE WHOLE THING IN CAD! So, don't really use this here anymore ;-) ------------------------------------------------------------------------------------- To use the modified ribber arm with the side post mounts with the CSM version from JeepingJohnny (MrRoboto19 remix) I had to add a third mount point to the camshell. This makes it possible to use the straight ribber arm or the single-sided one. To use this you need the angled ribber arm from the original remix or my remix additionally.

Originally published on Printables
