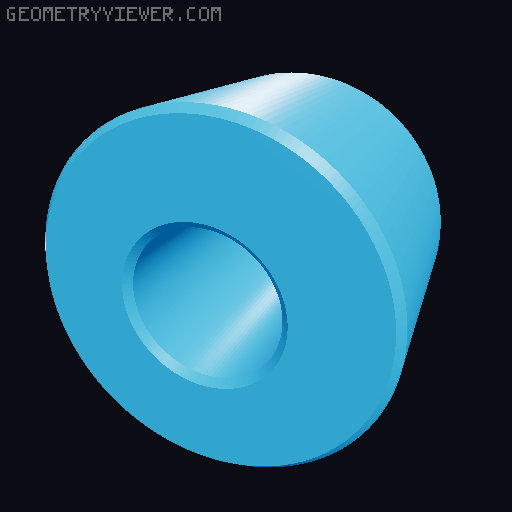

Customizable M20 Cable Glands, Inserts, Plug and Gasket (12 & 15mm ID)

Complete set of M20 cable glands for 12mm and 15mm inner diameters, including 2-7-wire inserts (1.5mm² & 2.5mm² versions), reducing inserts (3-13mm) and a gasket for reliable sealing. Also includes an M20 plug compatible with the gasket and 12mm cable gland nut. Perfect for junction boxes or similar applications. Three parts per cable gland: body, inner nut, and top nut. Durable and highly versatile! Thank you very much 93djen for your work on this! Works great with Makita 18V LXT Battery Extension . Printer Settings: Cable gland Material : PETG, ABS or PA (for strength & heat resistance). PLA may work but is less durable. Insert & gasket Material: TPU or similar Nozzle Size : 0.4mm or larger. Layer Height : 0.2mm recommended. Supports : None required. Infill : >30% Wall thickness: >1,2mm Key Details: Hole Size Required for M20 Cable Glands : 20-21mm diameter. Includes inserts compatible with 12mm and 15mm cable glands. Metric-Imperial Conversion Table: Metric Imperial Hole Size :>20mm>0.787 inchesCable Gland Inner Diameter: 12mm0.472 inchesCable Gland Inner Diameter: 15mm0.591 inchesThread Length: 10mm0.394 inchesWire gauge compatibility (1.5mm² / 2.5mm²)16 AWG / 14 AWG Note on PG Cable Glands: M20 glands differ from PG13.5 in hole size requirements. M20 needs a 20mm hole, while PG13.5 requires a 21mm hole. meaning that this M20 cable glands can be used in junction boxes and similar designed for PG13.5
