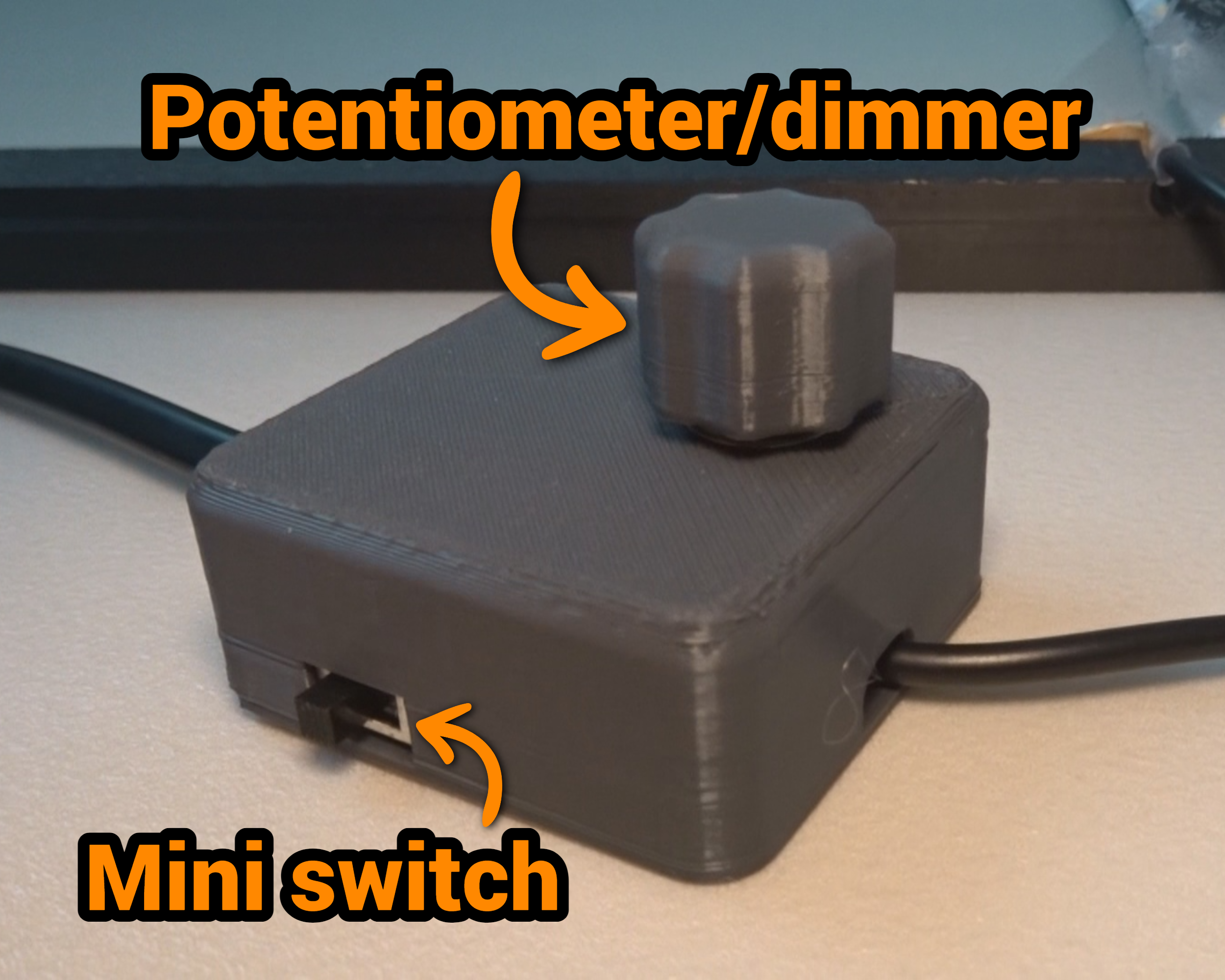

Dimmable light switch 3D model thumbnail

Dimmable light switch

by Creative Electronics · via Printables
FormatSTL
CategoryElectronics
LicenseCC BY-NC
Triangles13.8k
UploadedMar 4, 2023
⬇ 33 downloads ❤ 9 likes 👁 705 views

Description

I made this holder for a potentiometer and a little switch so you can dim for example LED strips. I used this for a Bambu Lab X1 Carbon from a friend of mine. I made a youtube video about this project: Print settings: - Part 1: 0,15 mm Layer heights - 20% Infill - 55mm/s - No supports - Part 2: 0,15 mm Layer heights - 20% Infill - 55mm/s - No supports - Part 3.2: 0,15 mm Layer heigts - 20% Infill - 55mm/s - Tree supports Required materials: - Potentiometer/dimmer: https://opencircuit.be/product/2k-ohm-lineaire-potentiometer-2-stuks - Mini switch: I found the switch on a PCB of a broken PC mouse - You may need a M2x6 bolt to fasten part 2 onto part 1 but you can also need some (hot) glue.
holder led strip electronics dimmable bambu bambulabx1 bambulabs
