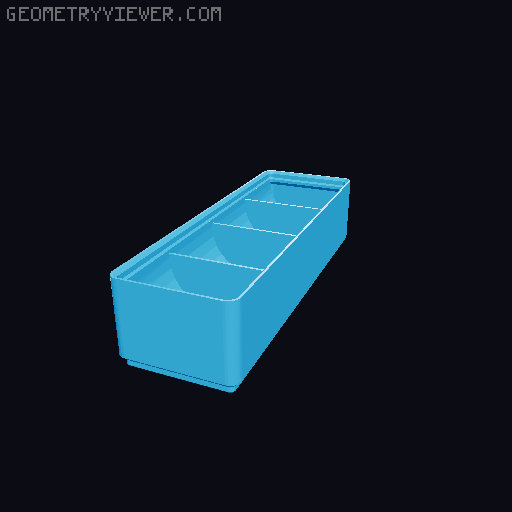

Divided Gridfinity Boxes with Finger Scoops (CadQuery Customizable)

Derived from my other model “Divided Gridfinity Boxes" but now have added Finger Scoops for getting small parts out of the boxes easier! Included source code and a random selection of box sizes and divider configurations. #adjust these three variables to change the grid size x_grid_number = 1 #CHANGEME! 1+ number of x units of gridfinity size y_grid_number = 2 #CHANGEME! 1+ number of y units of gridfinity size unit_height = 3 #CHANGME! 2+ number of units -- unitless in integer #adjust these variables to change the number of divider walls x_divider_number = 0 #CHANGEME! number of divider walls y_divider_number = 2 #CHANGEME! #^ for this scooped version, recommend, x_divs is fixed at zero #and y_divs is adjusted as desired disable_mholes = True #disable magnet/bolt holes in container disable_scoops = False #use this to switch scoops on/off, #^scoops are only on face perp. to x-axis and on one side #^scoops do not take into account divider walls #by default they are the max allowable size I used CadQuery/CQ-Editor to design this with a recent version checked out from github on April 13th, 2022. Unfortunately CadHub.xyz does not have a recent enough version of CadQuery to render this properly (n.b. the issue is with lack of a combine argument in the older version of the eachpoint method). CQ-Editor is available on github at CadQuery/CQ-editor, but the latest stable release will NOT run the included cadquery source code, so please instead use a static build from here: https://github.com/jdegenstein/jmwright-CQ-Editor/releases/ REVISION HISTORY: 220518 Rev 1 Added the ability to disable the magnet/bolt holes in the CadQuery source code
