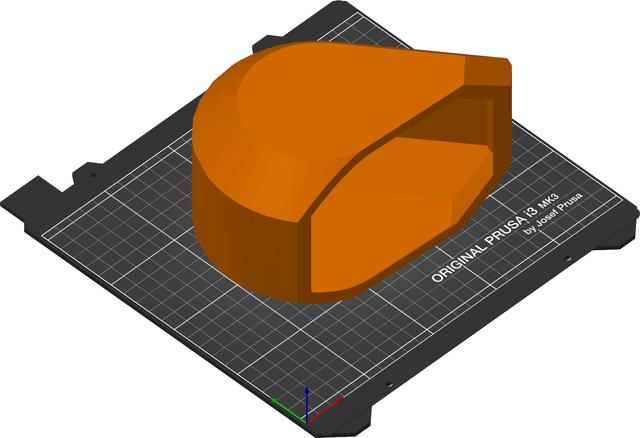

DIY mask & helmet for DUMMY 13 V1.2

V1.2 21. Dec. 2023: Helmet added The STLs were realigned for printing Based on DUMMY 13 Beta - Oct. 2023 DUMMY 13 Printable Jointed Figure © 2023 by Lucky 13 Toys is licensed under CC BY 4.0 The parts fit on the original DUMMY13 head and require no support when printing. Get your Dummy 13 here: /model/593185 I designed this parts to create different outfits for DUMMY 13. Mask: Tight-fitting, slim, somewhat more difficult to print as the outer wall is very thin Helmet: Less tight-fitting, slightly wider, easier to print on as the outer wall is slightly thicker Printing: Layer heightBrimSupportsHelmet 0.15mmx-Mask0.10mmx- Assembly: Slide the head into the parts and press it in with gentle force on the chin. If this is not possible, it is probably due to the following points: Check the inside (mostly the top and behind the eyes) to see if it has been printed cleanly and remove any filament debris that is sticking out Has the brim been removed cleanly? The elephant foot can cause the inner rim to be a little too narrow, just sand the inner rim down a little or work it with a knife 📷 Image redacted — claim this model to add your own media
