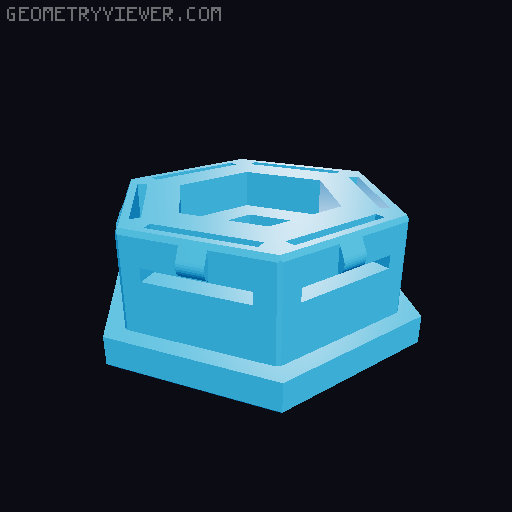

DryBox to Honeycomb Storage Wall Adapter 3D model thumbnail

DryBox to Honeycomb Storage Wall Adapter

by 3Dimensions · via Printables
FormatSTL
CategoryHome
LicenseCC BY-NC
Triangles876
UploadedAug 8, 2023
⬇ 192 downloads ❤ 76 likes 👁 1.9k views

Description

I want to attach my Drybox on the Honeycomb Storage Wall. I created an adapter that fits to the storage wall and the drybox. Assembly Notes: Insert the hexagon nut into the adapter Insert the honeycomb “insert M4” into the adapter Insert the hexagon nut into the “insert M4” Screw the “insert M4” to the adapter Drill the holes in the DryBox, Diameter 4.2 - 4.5 Screw the preassembled adapter to the Drybox with the help of the Countersunk washer The adapter could fit very tight into the Honeycomb Storage Wall. In this case please tighten the screws in the drybox only after inserting it into the Honeycomb Storage wall. Bill of Materials: 8x hexagon nut M4 8x M4x12 Countersunk head screw 4x Countersunk washer, aluminium Print Settings: I used PETG, PLA will work, too 0,2mm layer heigt 0,4mm nozzle no supports needed I used galaxy black
